Pivoting & joining data

ds4owd - data science for openwashdata

Lars Schöbitz

ETH Zurich

Nov 13, 2025

Learning Objectives (for this week)

1. Learners can apply functions from the tidyr R Package to transform their data from a wide to a long format and vice versa.
2. Learners can apply functions from the dplyr R Package to join multiple data sets.

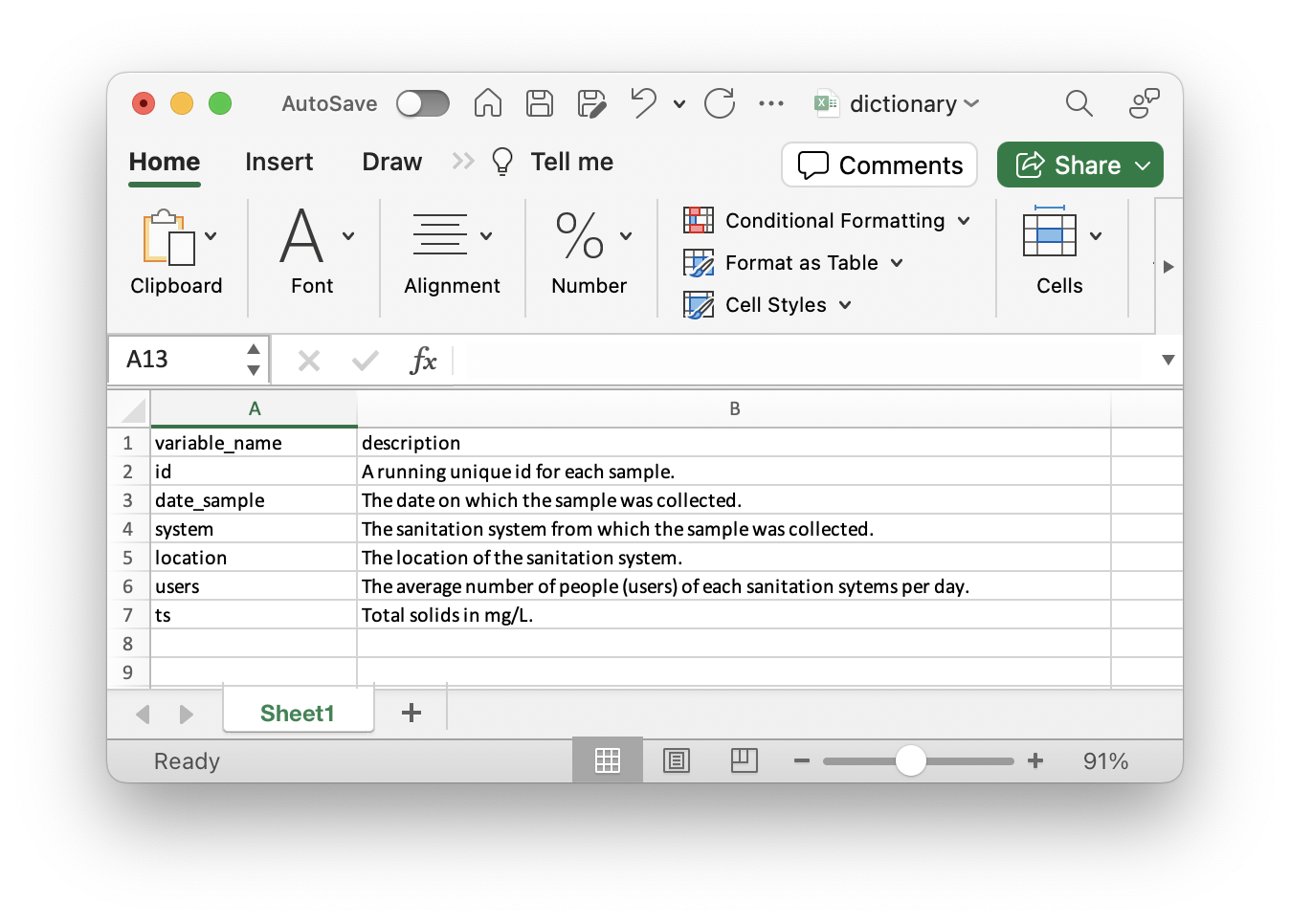

3. Learners can understand the relevance a data dictionary to describe variable names in a data set.

Part 1: Tidy data and pivoting

.

Illustrations from the Openscapes blog Tidy Data for reproducibility, efficiency, and collaboration by Julia Lowndes and Allison Horst

.

Illustrations from the Openscapes blog Tidy Data for reproducibility, efficiency, and collaboration by Julia Lowndes and Allison Horst

.

Illustrations from the Openscapes blog Tidy Data for reproducibility, efficiency, and collaboration by Julia Lowndes and Allison Horst

A grammar of data tidying

The goal of tidyr is to help you tidy your data via

• pivoting for going between wide and long data
• splitting and combining character columns
• nesting and unnesting columns
• clarifying how NAs should be treated

Slide taken from Data Science in a Box

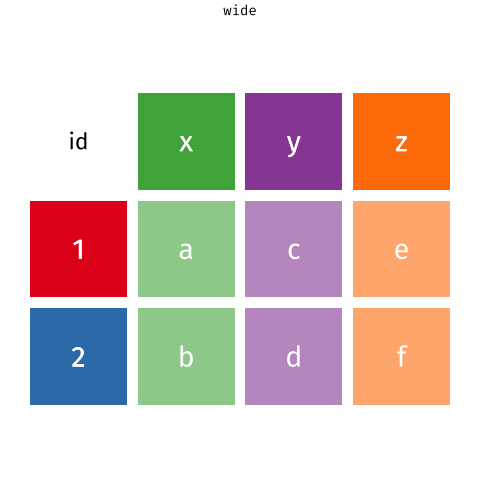

Pivoting data

Waste characterisation data

objid	location	pet	metal_alu	glass	paper	other	total
900	eth	0.06	0.06	0.58	0.21	1.14	2.05
899	eth	0.14	0.01	0.18	0.28	3.04	3.64
921	old_town	0.00	0.00	0.00	0.41	1.57	1.99
916	old_town	0.17	0.04	0.80	0.55	0.62	2.19
900	eth	0.10	0.04	0.00	0.40	0.58	1.12
899	eth	0.08	0.03	0.00	0.05	0.34	0.50
921	old_town	0.08	0.03	0.30	0.40	1.52	2.33
916	old_town	0.11	0.04	0.92	1.01	1.99	4.07

How would you plot this?

Three variables

objid	location	total
900	eth	2.05
899	eth	3.64
921	old_town	1.99
916	old_town	2.19
900	eth	1.12
899	eth	0.50
921	old_town	2.33
916	old_town	4.07

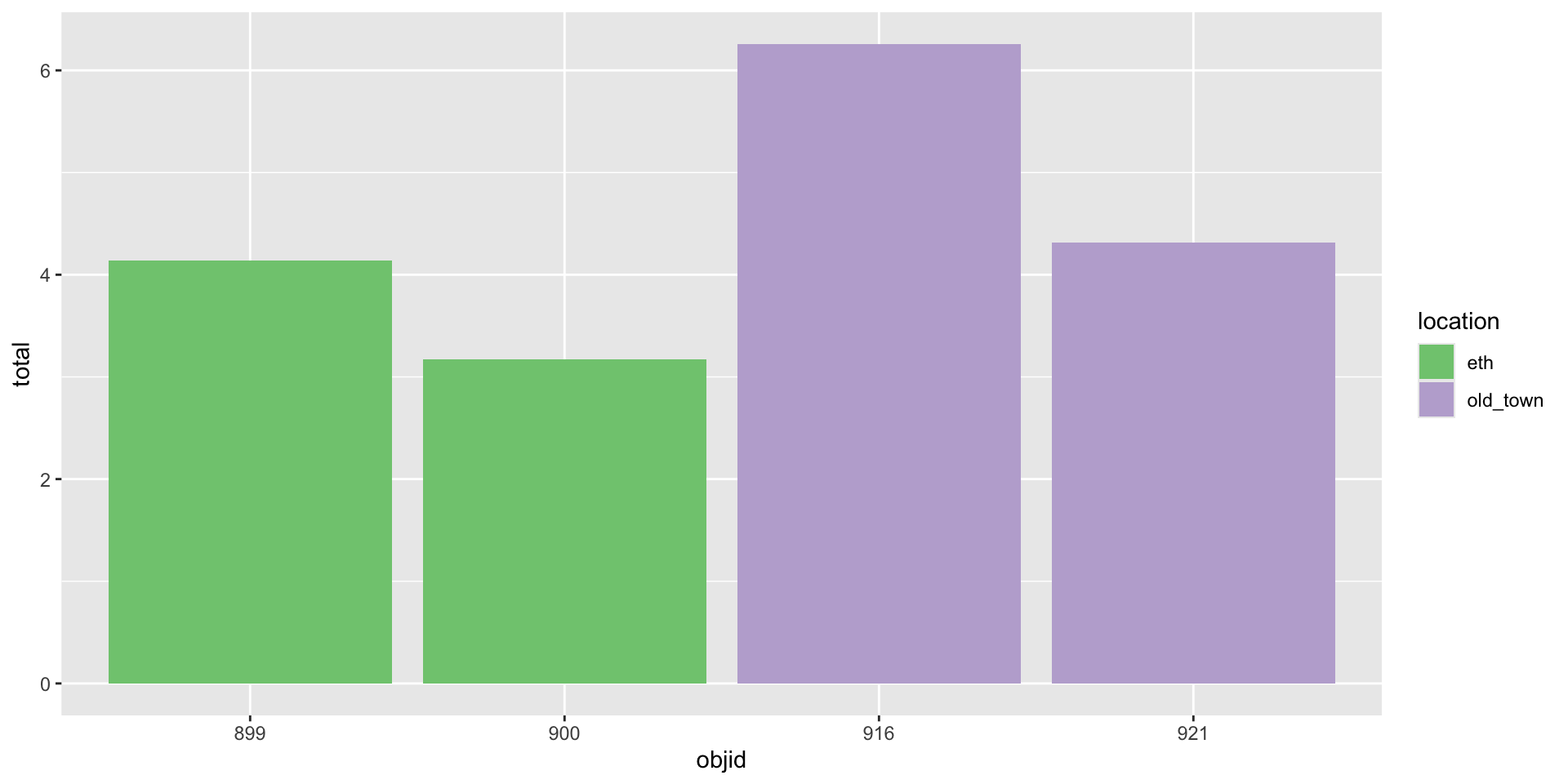

Three variables -> three aesthetics

ggplot(data = waste_data_untidy,
       mapping = aes(x = objid,
                     y = total,
                     fill = location)) +
  geom_col() +
  scale_fill_brewer(type = "qual")

And how to plot this?

Reminder: Data (in wide format)

objid	location	pet	metal_alu	glass	paper	other
900	eth	0.06	0.06	0.58	0.21	1.14
899	eth	0.14	0.01	0.18	0.28	3.04
921	old_town	0.00	0.00	0.00	0.41	1.57
916	old_town	0.17	0.04	0.80	0.55	0.62
900	eth	0.10	0.04	0.00	0.40	0.58
899	eth	0.08	0.03	0.00	0.05	0.34
921	old_town	0.08	0.03	0.30	0.40	1.52
916	old_town	0.11	0.04	0.92	1.01	1.99

You need: A long format

objid	location	waste_category	weight
900	eth	pet	0.06
900	eth	metal_alu	0.06
900	eth	glass	0.58
900	eth	paper	0.21
900	eth	other	1.14
899	eth	pet	0.14
899	eth	metal_alu	0.01
899	eth	glass	0.18
899	eth	paper	0.28
899	eth	other	3.04
921	old_town	pet	0.00
921	old_town	metal_alu	0.00
921	old_town	glass	0.00
921	old_town	paper	0.41
921	old_town	other	1.57
916	old_town	pet	0.17
916	old_town	metal_alu	0.04
916	old_town	glass	0.80
916	old_town	paper	0.55
916	old_town	other	0.62
900	eth	pet	0.10
900	eth	metal_alu	0.04
900	eth	glass	0.00
900	eth	paper	0.40
900	eth	other	0.58
899	eth	pet	0.08
899	eth	metal_alu	0.03
899	eth	glass	0.00
899	eth	paper	0.05
899	eth	other	0.34
921	old_town	pet	0.08
921	old_town	metal_alu	0.03
921	old_town	glass	0.30
921	old_town	paper	0.40
921	old_town	other	1.52
916	old_town	pet	0.11
916	old_town	metal_alu	0.04
916	old_town	glass	0.92
916	old_town	paper	1.01
916	old_town	other	1.99

Three variables -> three aesthetics

ggplot(data = waste_data_tidy,
       mapping = aes(x = objid,
                     y = weight,
                     fill = waste_category)) +
  geom_col() +
  scale_fill_brewer(type = "qual")

How to

waste_data_untidy

objid	location	pet	metal_alu	glass	paper	other
900	eth	0.06	0.06	0.58	0.21	1.14
899	eth	0.14	0.01	0.18	0.28	3.04
921	old_town	0.00	0.00	0.00	0.41	1.57
916	old_town	0.17	0.04	0.80	0.55	0.62
900	eth	0.10	0.04	0.00	0.40	0.58
899	eth	0.08	0.03	0.00	0.05	0.34
921	old_town	0.08	0.03	0.30	0.40	1.52
916	old_town	0.11	0.04	0.92	1.01	1.99

How to

waste_data_untidy |>
  pivot_longer(cols = pet:other,
               names_to = "waste_category",
               values_to = "weight")

objid	location	waste_category	weight
900	eth	pet	0.06
900	eth	metal_alu	0.06
900	eth	glass	0.58
900	eth	paper	0.21
900	eth	other	1.14
899	eth	pet	0.14
899	eth	metal_alu	0.01
899	eth	glass	0.18
899	eth	paper	0.28
899	eth	other	3.04
921	old_town	pet	0.00
921	old_town	metal_alu	0.00
921	old_town	glass	0.00
921	old_town	paper	0.41
921	old_town	other	1.57
916	old_town	pet	0.17
916	old_town	metal_alu	0.04
916	old_town	glass	0.80
916	old_town	paper	0.55
916	old_town	other	0.62
900	eth	pet	0.10
900	eth	metal_alu	0.04
900	eth	glass	0.00
900	eth	paper	0.40
900	eth	other	0.58
899	eth	pet	0.08
899	eth	metal_alu	0.03
899	eth	glass	0.00
899	eth	paper	0.05
899	eth	other	0.34
921	old_town	pet	0.08
921	old_town	metal_alu	0.03
921	old_town	glass	0.30
921	old_town	paper	0.40
921	old_town	other	1.52
916	old_town	pet	0.11
916	old_town	metal_alu	0.04
916	old_town	glass	0.92
916	old_town	paper	1.01
916	old_town	other	1.99

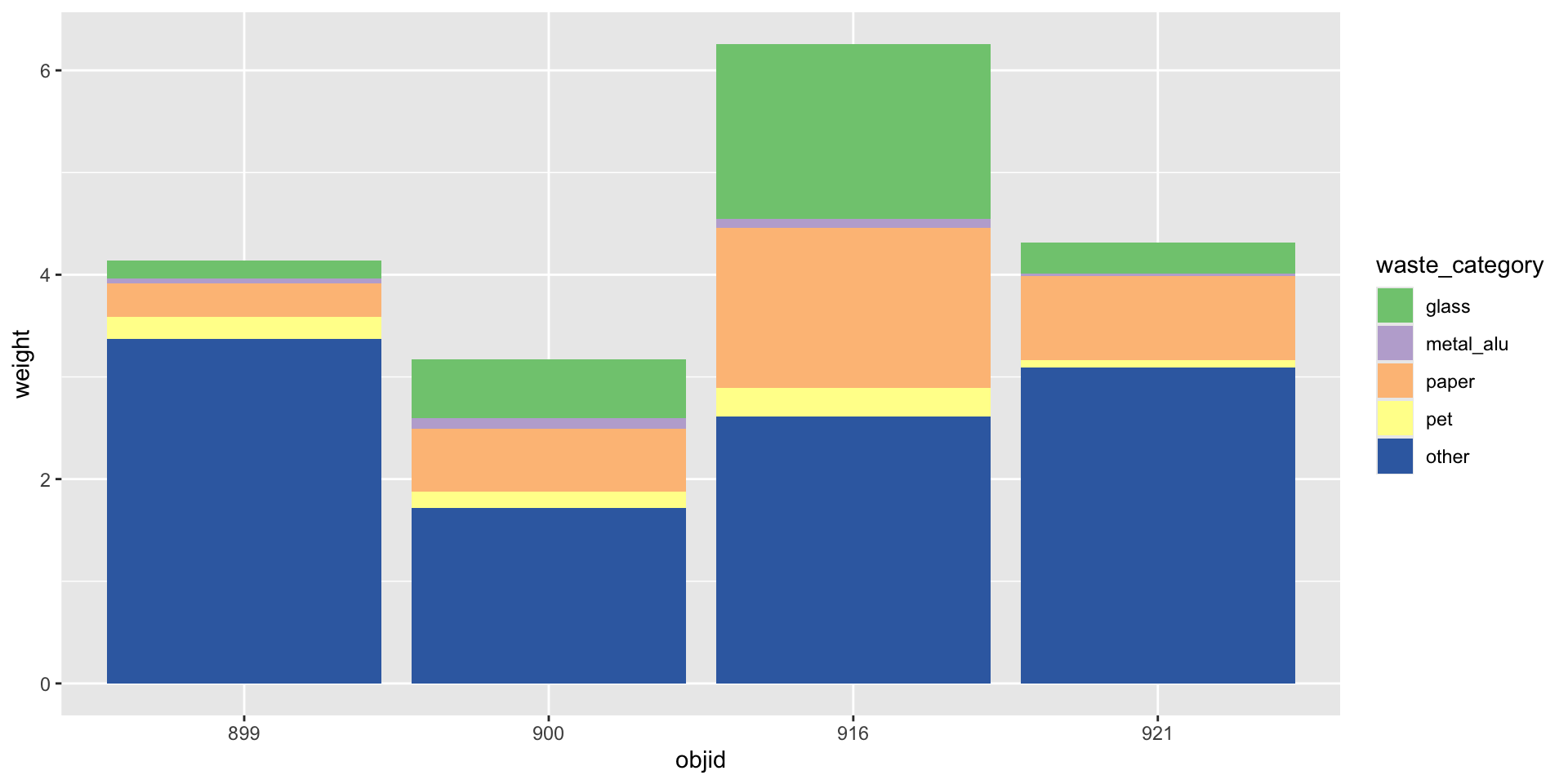

Three variables -> three aesthetics

ggplot(data = waste_data_tidy,
       mapping = aes(x = objid,
                     y = weight,
                     fill = waste_category)) +
  geom_col() +
  scale_fill_brewer(type = "qual")

Your turn: md-07-exercises

1. Open https://posit.cloud/spaces/663318/content in your browser.
2. Verify that the ds4owd workspace is open.
3. Click Start next to md-07-exercises.
4. In the File Manager in the bottom right window, locate the 01a-pivot-longer-your-turn.qmd file and click on it to open it in the top left window.

20:00

Take a break

Please get up and move! Let your emails rest in peace.

10:00

Your turn: md-07-exercises

1. Open https://posit.cloud/spaces/663318/content in your browser.
2. Verify that the ds4owd workspace is open.
3. Click Start next to md-07-exercises.
4. In the File Manager in the bottom right window, locate the 02a-pivot-wider-your-turn.qmd file and click on it to open it in the top left window.

20:00

Part 2: Joining data

We…

…have multiple data frames

…want to bring them together

professions <- read_csv(here::here("data/scientists/professions.csv"))
dates <- read_csv(here::here("data/scientists/dates.csv"))
works <- read_csv(here::here("scientists/works.csv"))

Data: Women in science

Information on 10 women in science who changed the world

name
Ada Lovelace
Marie Curie
Janaki Ammal
Chien-Shiung Wu
Katherine Johnson
Rosalind Franklin
Vera Rubin
Gladys West
Flossie Wong-Staal
Jennifer Doudna

Source: Discover Magazine

Inputs

• professions
• dates
• works

name	profession
Ada Lovelace	Mathematician
Marie Curie	Physicist and Chemist
Janaki Ammal	Botanist
Chien-Shiung Wu	Physicist
Katherine Johnson	Mathematician
Rosalind Franklin	Chemist
Vera Rubin	Astronomer
Gladys West	Mathematician
Flossie Wong-Staal	Virologist and Molecular Biologist
Jennifer Doudna	Biochemist

name	birth_year	death_year
Janaki Ammal	1897	1984
Chien-Shiung Wu	1912	1997
Katherine Johnson	1918	2020
Rosalind Franklin	1920	1958
Vera Rubin	1928	2016
Gladys West	1930	NA
Flossie Wong-Staal	1947	NA
Jennifer Doudna	1964	NA

name	known_for
Ada Lovelace	first computer algorithm
Marie Curie	theory of radioactivity, discovery of elements polonium and radium, first woman to win a Nobel Prize
Janaki Ammal	hybrid species, biodiversity protection
Chien-Shiung Wu	confim and refine theory of radioactive beta decy, Wu experiment overturning theory of parity
Katherine Johnson	calculations of orbital mechanics critical to sending the first Americans into space
Vera Rubin	existence of dark matter
Gladys West	mathematical modeling of the shape of the Earth which served as the foundation of GPS technology
Flossie Wong-Staal	first scientist to clone HIV and create a map of its genes which led to a test for the virus
Jennifer Doudna	one of the primary developers of CRISPR, a ground-breaking technology for editing genomes

Desired output

name	profession	birth_year	death_year	known_for
Ada Lovelace	Mathematician	NA	NA	first computer algorithm
Marie Curie	Physicist and Chemist	NA	NA	theory of radioactivity, discovery of elements polonium and radium, first woman to win a Nobel Prize
Janaki Ammal	Botanist	1897	1984	hybrid species, biodiversity protection
Chien-Shiung Wu	Physicist	1912	1997	confim and refine theory of radioactive beta decy, Wu experiment overturning theory of parity
Katherine Johnson	Mathematician	1918	2020	calculations of orbital mechanics critical to sending the first Americans into space
Rosalind Franklin	Chemist	1920	1958	NA
Vera Rubin	Astronomer	1928	2016	existence of dark matter
Gladys West	Mathematician	1930	NA	mathematical modeling of the shape of the Earth which served as the foundation of GPS technology
Flossie Wong-Staal	Virologist and Molecular Biologist	1947	NA	first scientist to clone HIV and create a map of its genes which led to a test for the virus
Jennifer Doudna	Biochemist	1964	NA	one of the primary developers of CRISPR, a ground-breaking technology for editing genomes

Inputs, reminder

names(professions)

[1] "name"       "profession"

names(dates)

[1] "name"       "birth_year" "death_year"

names(works)

[1] "name"      "known_for"

nrow(professions)

[1] 10

nrow(dates)

[1] 8

nrow(works)

[1] 9

Joining data frames

something_join(x, y)

• left_join(): all rows from x
• right_join(): all rows from y
• full_join(): all rows from both x and y
• …

Setup

For the next few slides…

x <- tibble(
  id = c(1, 2, 3),
  value_x = c("x1", "x2", "x3")
  )

x

# A tibble: 3 × 2
     id value_x
  <dbl> <chr>
1     1 x1
2     2 x2
3     3 x3

y <- tibble(
  id = c(1, 2, 4),
  value_y = c("y1", "y2", "y4")
  )

y

# A tibble: 3 × 2
     id value_y
  <dbl> <chr>
1     1 y1
2     2 y2
3     4 y4

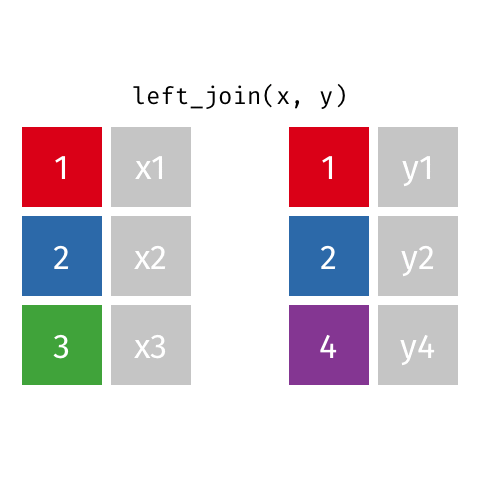

left_join()

left_join(x, y)

# A tibble: 3 × 3
     id value_x value_y
  <dbl> <chr>   <chr>
1     1 x1      y1
2     2 x2      y2
3     3 x3      <NA>

left_join()

professions %>%
  left_join(dates)

name	profession	birth_year	death_year
Ada Lovelace	Mathematician	NA	NA
Marie Curie	Physicist and Chemist	NA	NA
Janaki Ammal	Botanist	1897	1984
Chien-Shiung Wu	Physicist	1912	1997
Katherine Johnson	Mathematician	1918	2020
Rosalind Franklin	Chemist	1920	1958
Vera Rubin	Astronomer	1928	2016
Gladys West	Mathematician	1930	NA
Flossie Wong-Staal	Virologist and Molecular Biologist	1947	NA
Jennifer Doudna	Biochemist	1964	NA

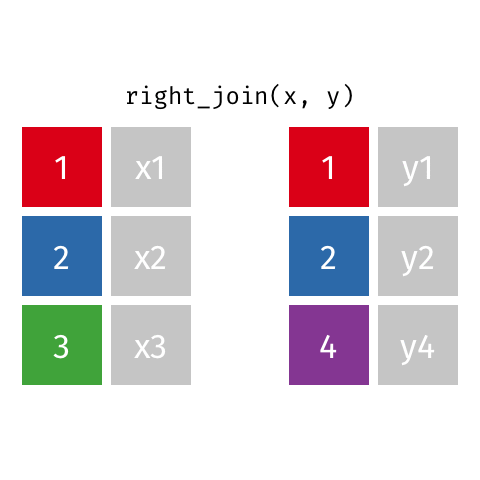

right_join()

right_join(x, y)

# A tibble: 3 × 3
     id value_x value_y
  <dbl> <chr>   <chr>
1     1 x1      y1
2     2 x2      y2
3     4 <NA>    y4

right_join()

professions %>%
  right_join(dates)

name	profession	birth_year	death_year
Janaki Ammal	Botanist	1897	1984
Chien-Shiung Wu	Physicist	1912	1997
Katherine Johnson	Mathematician	1918	2020
Rosalind Franklin	Chemist	1920	1958
Vera Rubin	Astronomer	1928	2016
Gladys West	Mathematician	1930	NA
Flossie Wong-Staal	Virologist and Molecular Biologist	1947	NA
Jennifer Doudna	Biochemist	1964	NA

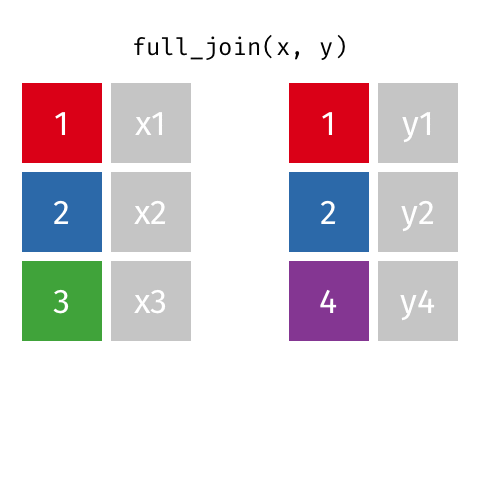

full_join()

full_join(x, y)

# A tibble: 4 × 3
     id value_x value_y
  <dbl> <chr>   <chr>
1     1 x1      y1
2     2 x2      y2
3     3 x3      <NA>
4     4 <NA>    y4

full_join()

dates %>%
  full_join(works)

name	birth_year	death_year	known_for
Janaki Ammal	1897	1984	hybrid species, biodiversity protection
Chien-Shiung Wu	1912	1997	confim and refine theory of radioactive beta decy, Wu experiment overturning theory of parity
Katherine Johnson	1918	2020	calculations of orbital mechanics critical to sending the first Americans into space
Rosalind Franklin	1920	1958	NA
Vera Rubin	1928	2016	existence of dark matter
Gladys West	1930	NA	mathematical modeling of the shape of the Earth which served as the foundation of GPS technology
Flossie Wong-Staal	1947	NA	first scientist to clone HIV and create a map of its genes which led to a test for the virus
Jennifer Doudna	1964	NA	one of the primary developers of CRISPR, a ground-breaking technology for editing genomes
Ada Lovelace	NA	NA	first computer algorithm
Marie Curie	NA	NA	theory of radioactivity, discovery of elements polonium and radium, first woman to win a Nobel Prize

Putting it altogether

professions %>%
  left_join(dates) %>%
  left_join(works)

name	profession	birth_year	death_year	known_for
Ada Lovelace	Mathematician	NA	NA	first computer algorithm
Marie Curie	Physicist and Chemist	NA	NA	theory of radioactivity, discovery of elements polonium and radium, first woman to win a Nobel Prize
Janaki Ammal	Botanist	1897	1984	hybrid species, biodiversity protection
Chien-Shiung Wu	Physicist	1912	1997	confim and refine theory of radioactive beta decy, Wu experiment overturning theory of parity
Katherine Johnson	Mathematician	1918	2020	calculations of orbital mechanics critical to sending the first Americans into space
Rosalind Franklin	Chemist	1920	1958	NA
Vera Rubin	Astronomer	1928	2016	existence of dark matter
Gladys West	Mathematician	1930	NA	mathematical modeling of the shape of the Earth which served as the foundation of GPS technology
Flossie Wong-Staal	Virologist and Molecular Biologist	1947	NA	first scientist to clone HIV and create a map of its genes which led to a test for the virus
Jennifer Doudna	Biochemist	1964	NA	one of the primary developers of CRISPR, a ground-breaking technology for editing genomes

Part 3: Metadata

Metadata: data about data

WHAT!?

Faecal sludge samples

Imagine:

• you are new to WASH research and you have never heard of feacal sludge management.
• you are interested in learning more about the topic and you want to find some data to play with.
• you find a publication with a dataset on faecal sludge characteristics.

Faecal sludge samples

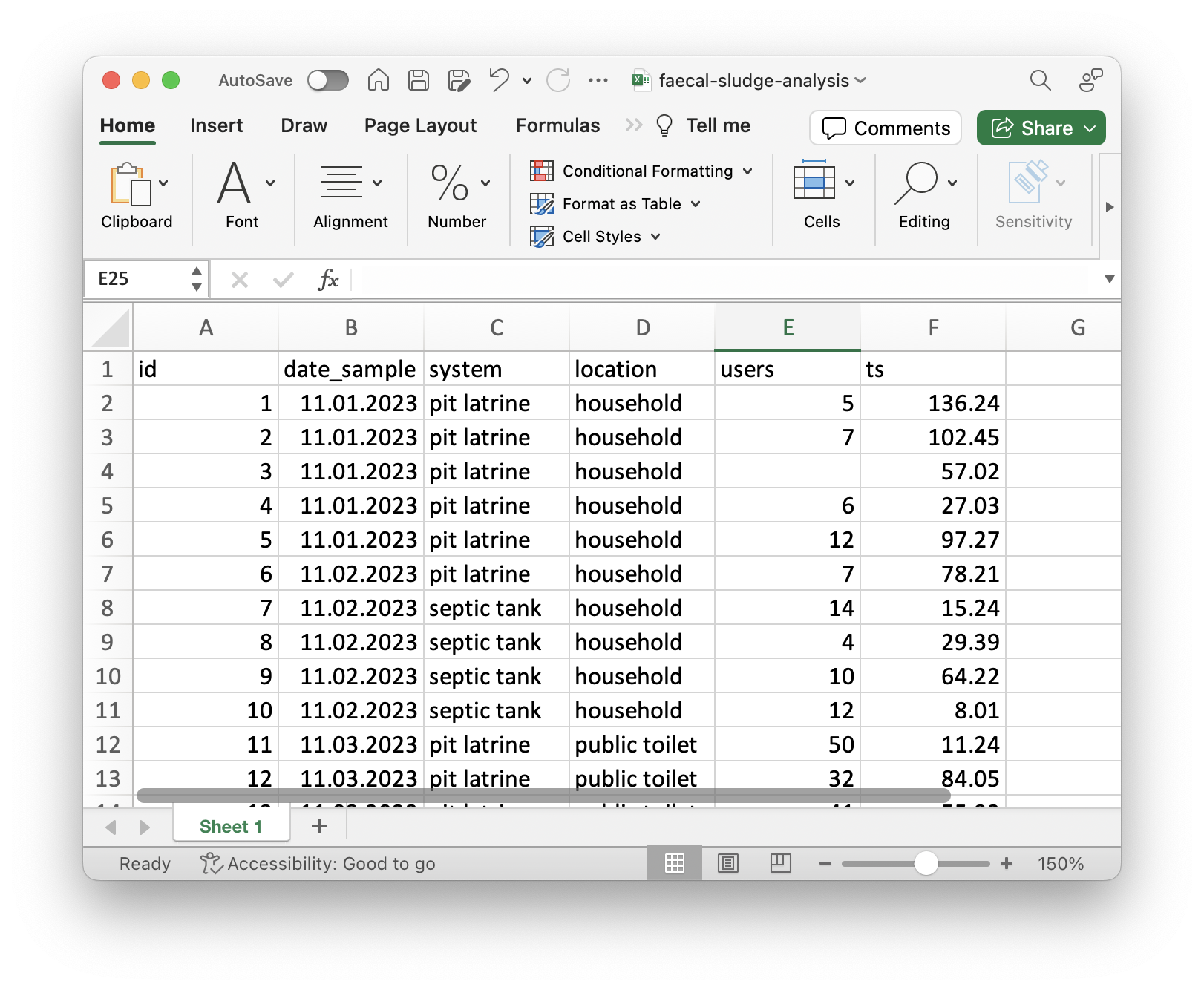

You download the XLSX file that contains the data and you open it in Excel. You see the following:

Faecal sludge samples

Open questions:

• What unit does users refer to?
• What does ts stand for?
• The date of what?
• Where was this data collected?
• Which method was used to collect the samples?

Questions that only the original author may have the answers to.

You as an author

have the chance to document your data properly once to make it easier for everyone else to know what it contains.

Documentation

Goes into a separate README file

• General information (authors, title, date, geographic location, etc.)
• Sharing / access information (license, links to publications, citation)
• Methodological information (sampling, analysis, etc.)

Data dictionary

Goes into a separate file (dictionary.csv).

Minimum required information

• Variable name
• Variable description

Data dictionary for faecal sludge samples

• Edit in spreadsheet software (e.g. MS Excel)

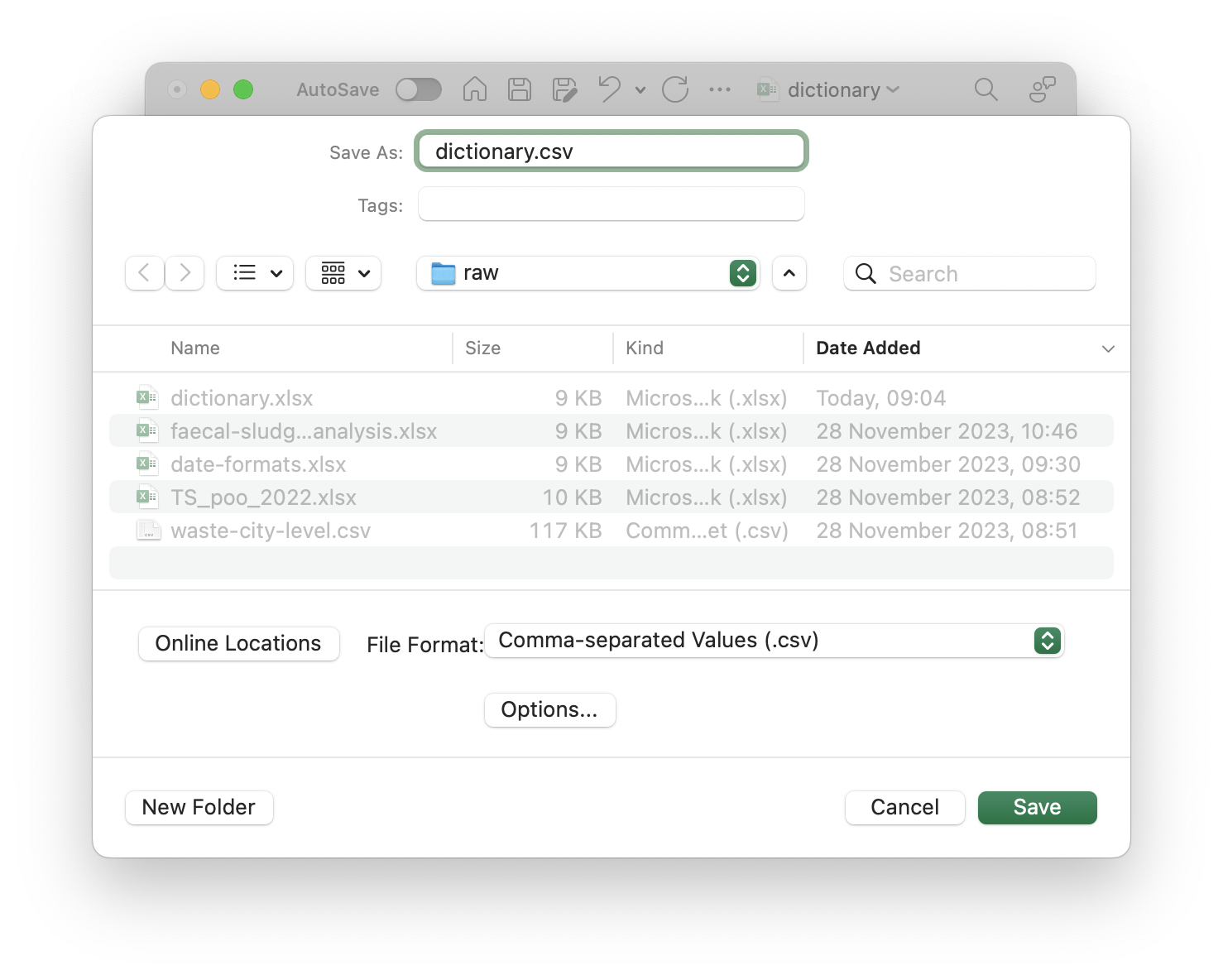

Data dictionary for faecal sludge samples

• Save as CSV file

Directory tree of a project

Capstone project of Rainbow Train: https://github.com/ds4owd-002/project-rainbow-train

.
├── R
│   └── 01-data-preparation.R
├── data
│   ├── processed
│   │   ├── README.md
│   │   ├── dictionary.csv
│   │   └── faecal-sludge-analysis.csv
│   └── raw
│       └── Faecal sludge Analysis_05112025.xlsx
├── docs
│   ├── index.html
│   ├── index.qmd
│   └── index_files
│       └── libs
└── project.Rproj

Directory tree of a project

• R folder: R scripts for data cleaning
• data folder: raw and processed data
• docs folder: the actual report that imports the processed data
• project.Rproj: RStudio project file

Inside the data folder

• raw: data as it was downloaded / as you received it (e.g. Excel file)
• processed: data that is ready to be used in the report

Inside the processed folder

• README.md: general information about the data
• dictionary.csv: data dictionary
• faecal-sludge-analysis.csv: cleaned data for which dictionary.csv applies

My turn: A tour of Rainbow Train’s project

Sit back and enjoy!

10:00

Homework assignments module 7

Module 7 documentation

ds4owd-002.github.io/website/content/modules/md-07.html

Homework due date

• Homework assignment due: November 19, 2025

Wrap-up

Course calendar

date	week	topic	module
11 September 2025	1	Welcome & get ready for the course	module 1
18 September 2025	2	Data science lifecycle & Exploratory data analysis using visualization	module 2
25 September 2025	3	Data transformation with dplyr	module 3
02 October 2025	4	Data import & Data organization in spreadsheets	module 4
09 October 2025	5	No class	NA
16 October 2025	6	No class	NA
23 October 2025	7	Conditions & Dates & Tables	module 5
30 October 2025	8	Data types & Vectors & For Loops	module 6
06 November 2025	9	No class	NA
13 November 2025	10	Pivoting & joining data	module 7
20 November 2025	11	Creating and publishing scholarly articles with Quarto and GitHub pages	module 8
27 November 2025	12	Bonus module: Use of AI for coding support	module 9
04 December 2025	13	Work on Capstone project	NA
11 December 2025	15	Final submission date of Capstone project	NA
18 December 2025	16	Graduation of openwashdata academy	module 10

Thanks!

Slides created via revealjs and Quarto: https://quarto.org/docs/presentations/revealjs/

Access slides as PDF on GitHub

References

All material is licensed under Creative Commons Attribution Share Alike 4.0 International.
