Data science lifecycle & Exploratory data analysis using visualization

ds4owd - data science for openwashdata

Lars Schöbitz

ETH Zurich

Sep 18, 2025

Q: How do I successfully complete the course?

You successfully complete the course and you will receive a certificate of completion if you:

1. Complete the quiz of each week by its due date

2- Hand in a complete capstone project report that uses a dataset of your choice by 11 December 2025 (instructions will follow)

While homework assignments are not required for completion, we highly recommend working on them and submitting it for feedback. This is the practice you need to become a data scientist.

Artwork by @allison_horst

Solving coding problems online

Tips for search engines (e.g. duckduckgo.com)

• Use actionable verbs that describe what you want to do
• Be specific
• Add R to the search query
• Add the name of the R package name to the search query
• Scroll through the top 5 results (don’t just pick the first)

Example: “How to remove a legend from a plot in R ggplot2”

Stack Overflow

What is it?

• The biggest support network for (coding) problems
• Can be intimidating at first
• Up-vote system

Workflow

• First, briefly read the question that was posted
• Then, read the answer marked as “correct”
• Then, read one or two more answers with high votes

Tips for AI tools (e.g. duck.ai)

• Use actionable verbs that describe what you want to do
• Be specific
• Add R to the search query
• Add the name of the R package name to the search query

Example: “How to remove a legend from a plot in R ggplot2”

Other sources for help

• Posit Community Forum: https://community.rstudio.com/
• Documentation websites: https://ggplot2.tidyverse.org/
• Mastodon / Bluesky tag: #rstats

Exercises & Assignments

Note

For every week, there will be two “projects”:

• md-0X-exercises (this is for lectures and we only work with it during lectures)
• md-0X-assignments-USERNAME (this is your homework and every module will have your username at the end of it. You will clone this to Posit Cloud to work with it)

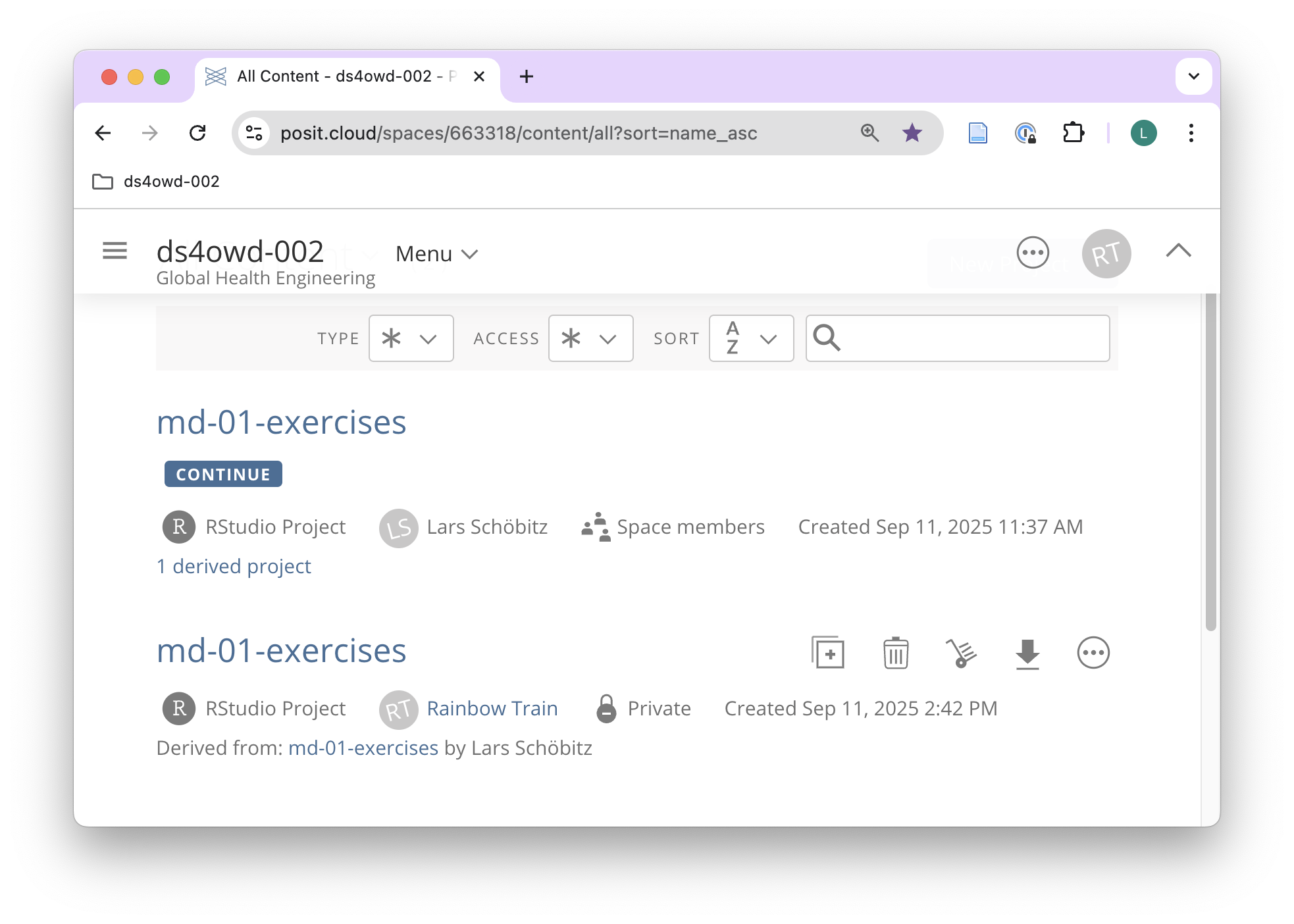

Lecture Exercises

• Click Start the first time
• Click Continue the next time
• It will look like two projects, but it is just one
• It doesn’t matter on which of the two you click

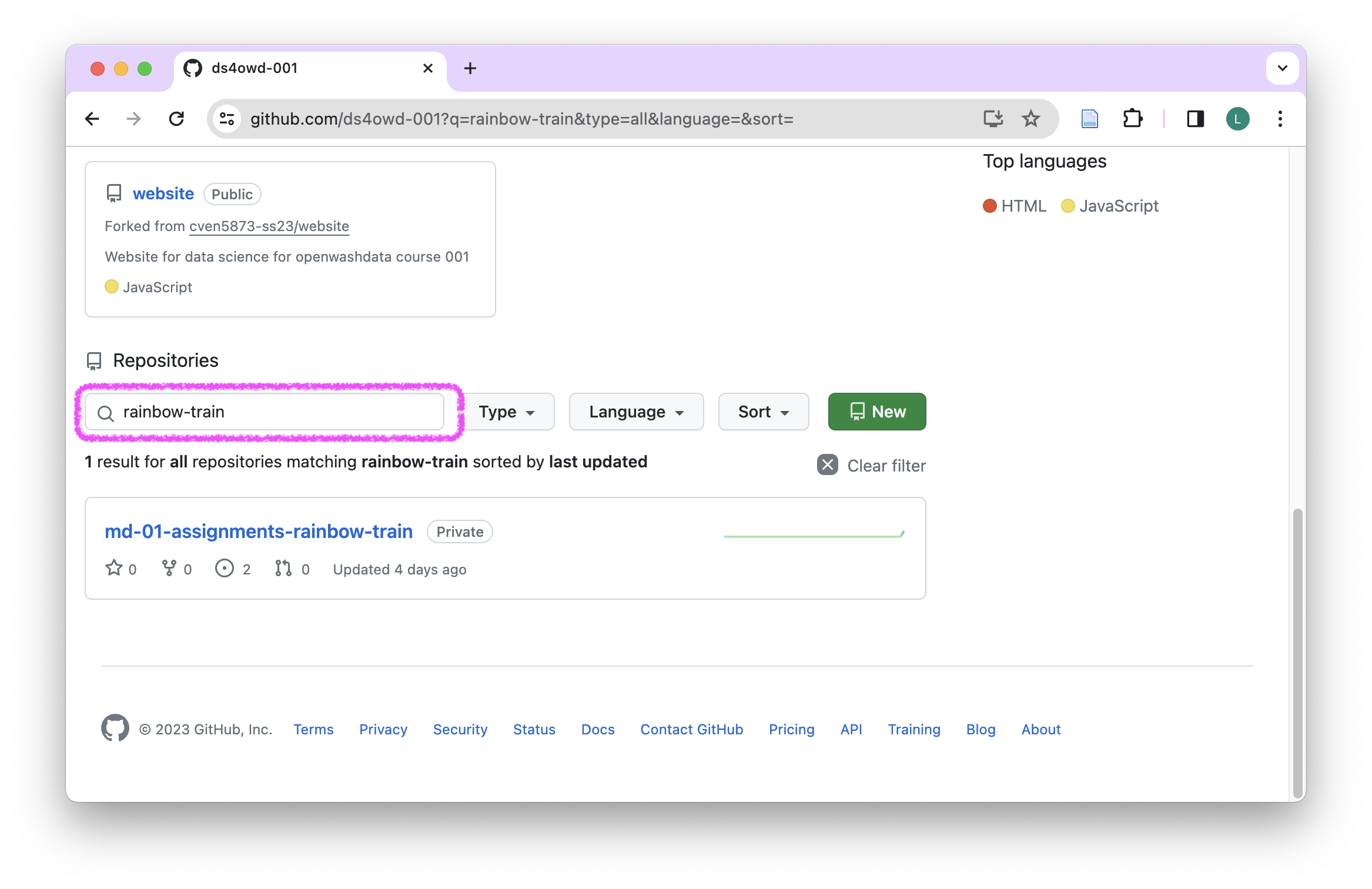

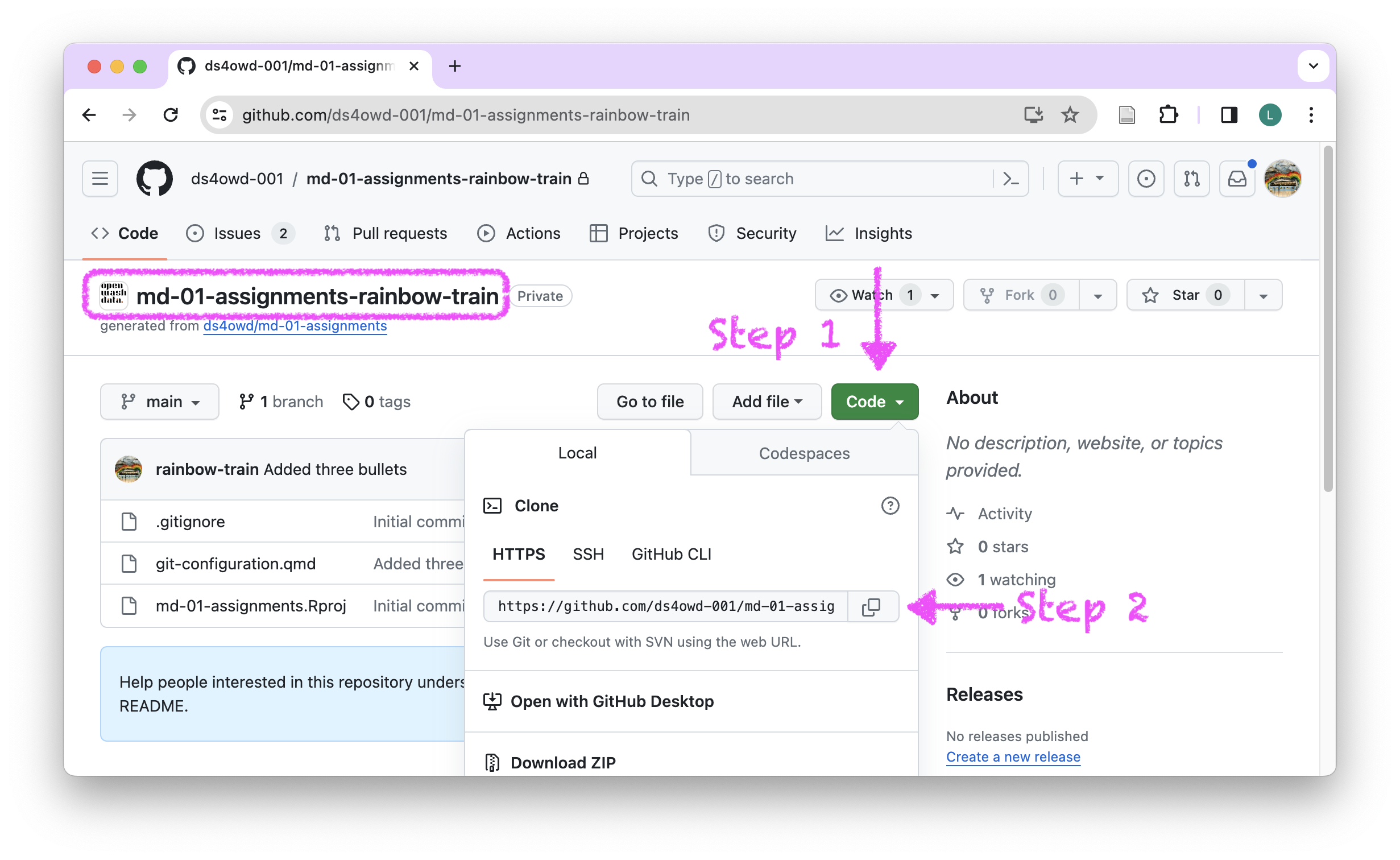

Homework Assignments

on GitHub Organisation

Assignment 1 of Module 2 is a Bookmark Folder assignment!

https://github.com/ds4owd-002

on your repository

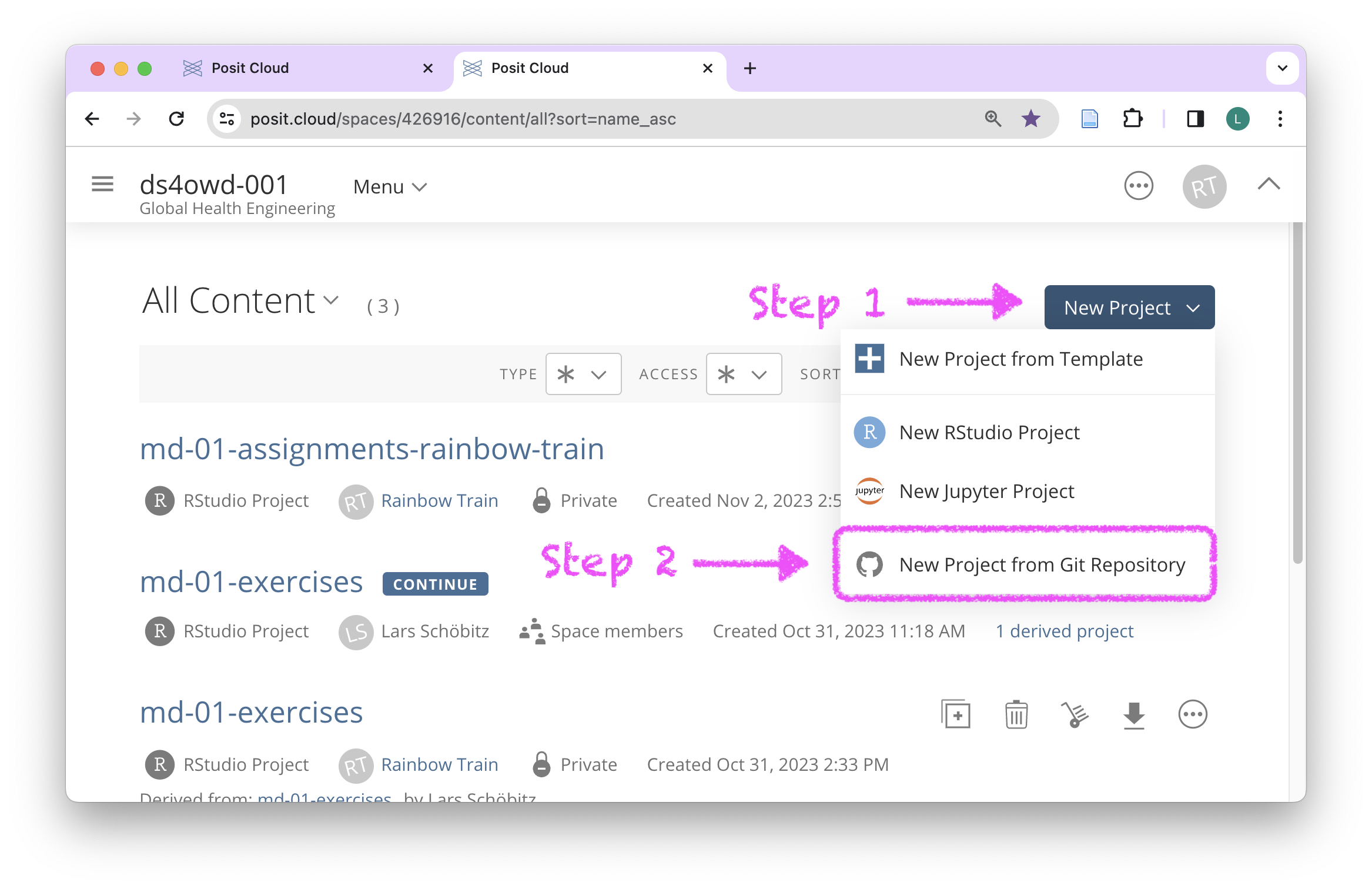

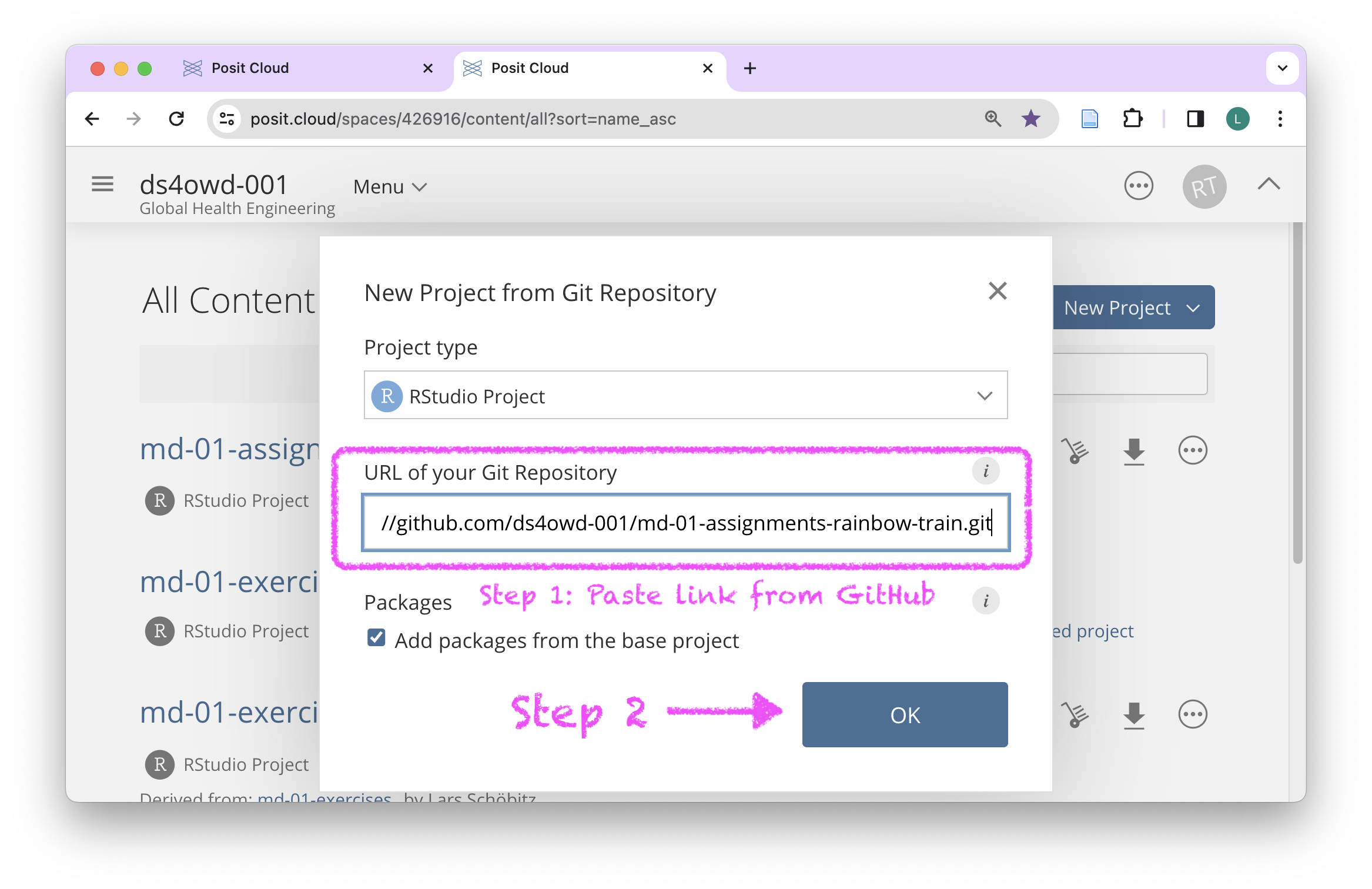

on Posit Cloud

posit.cloud/spaces/663318/

on Posit Cloud

Module 2 - Assignment 1: Bookmarks

This week, you will have an assignment for creating bookmarks in your browser. It is very useful and will support you through the course and beyond.

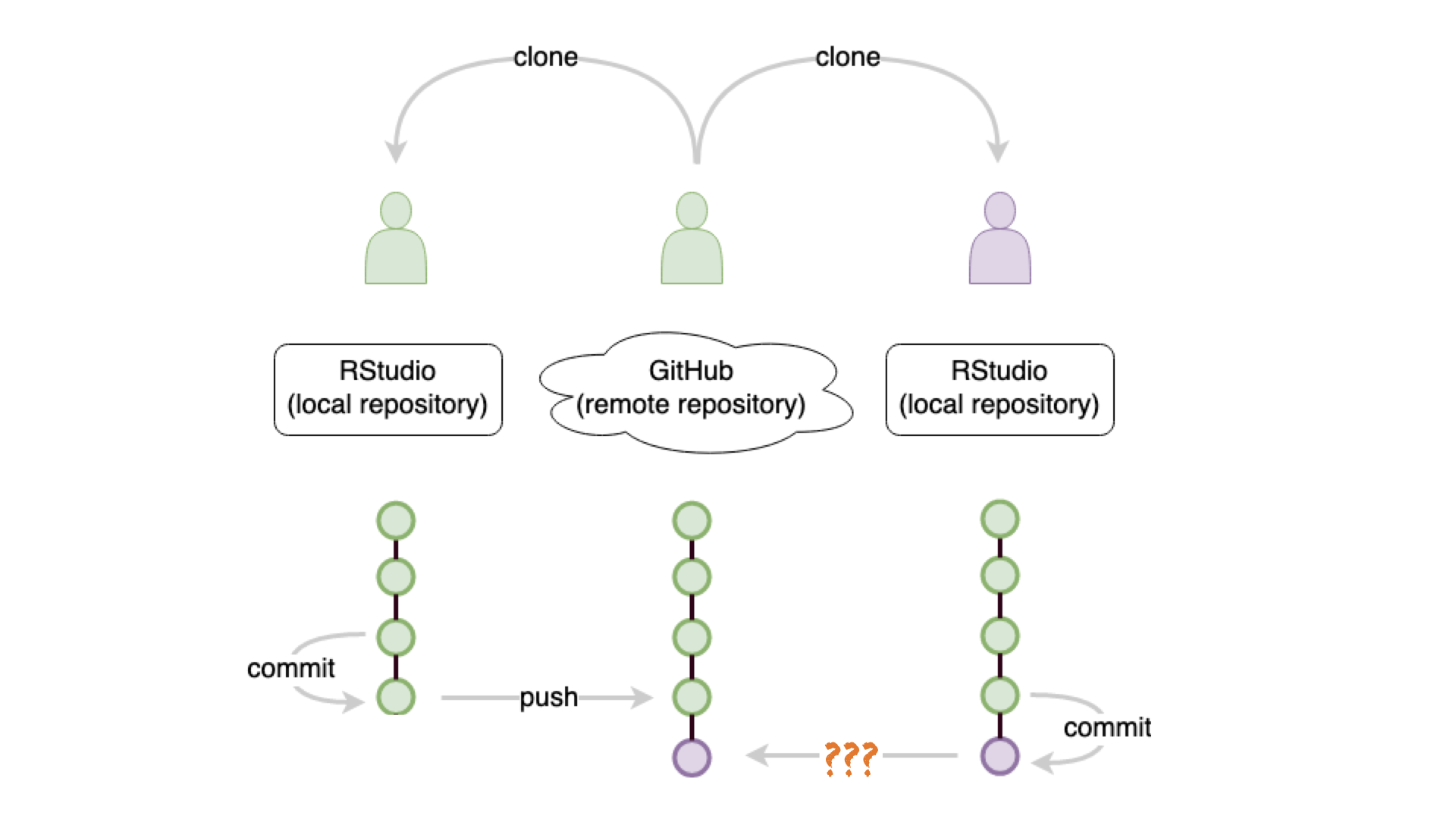

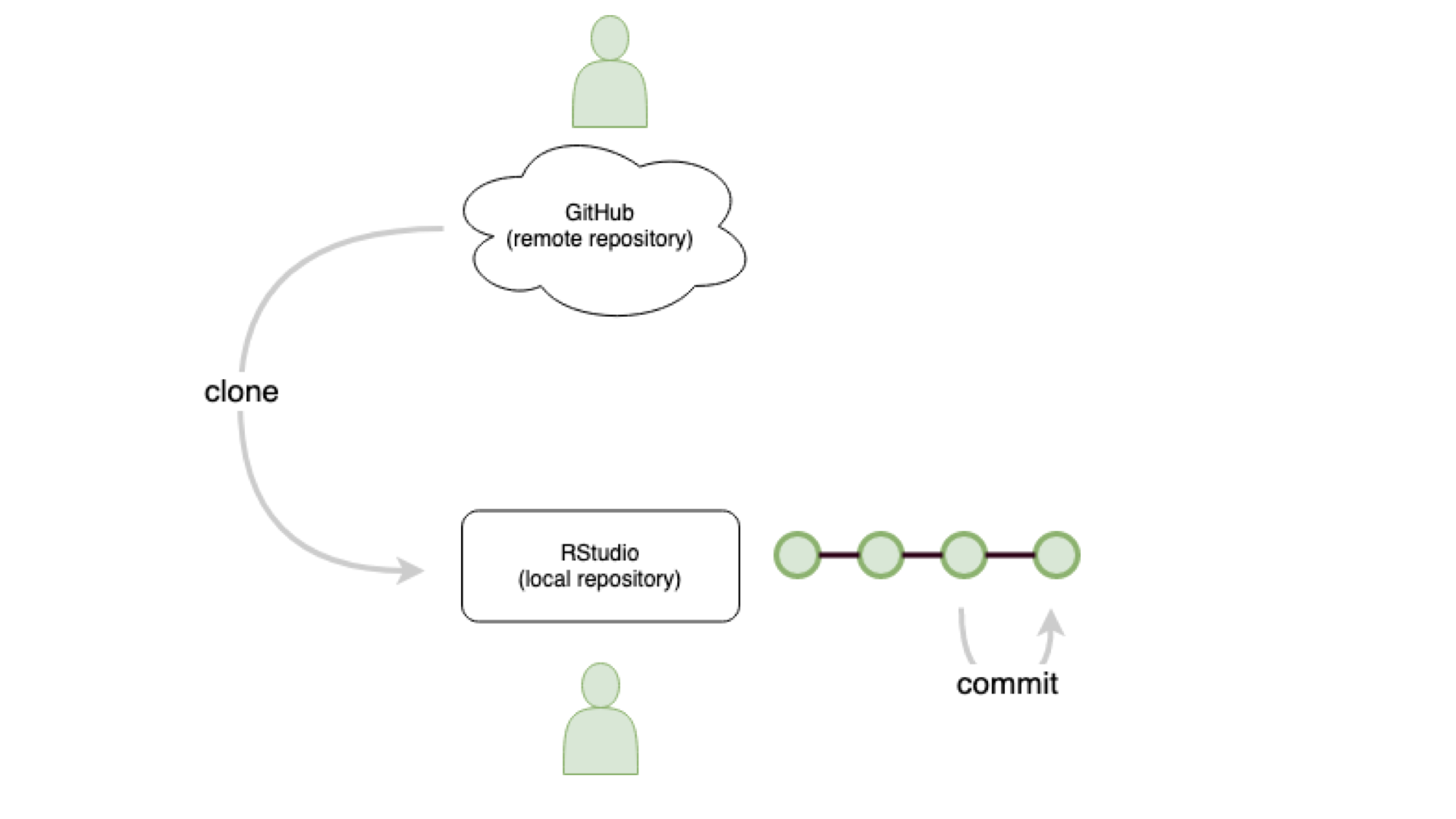

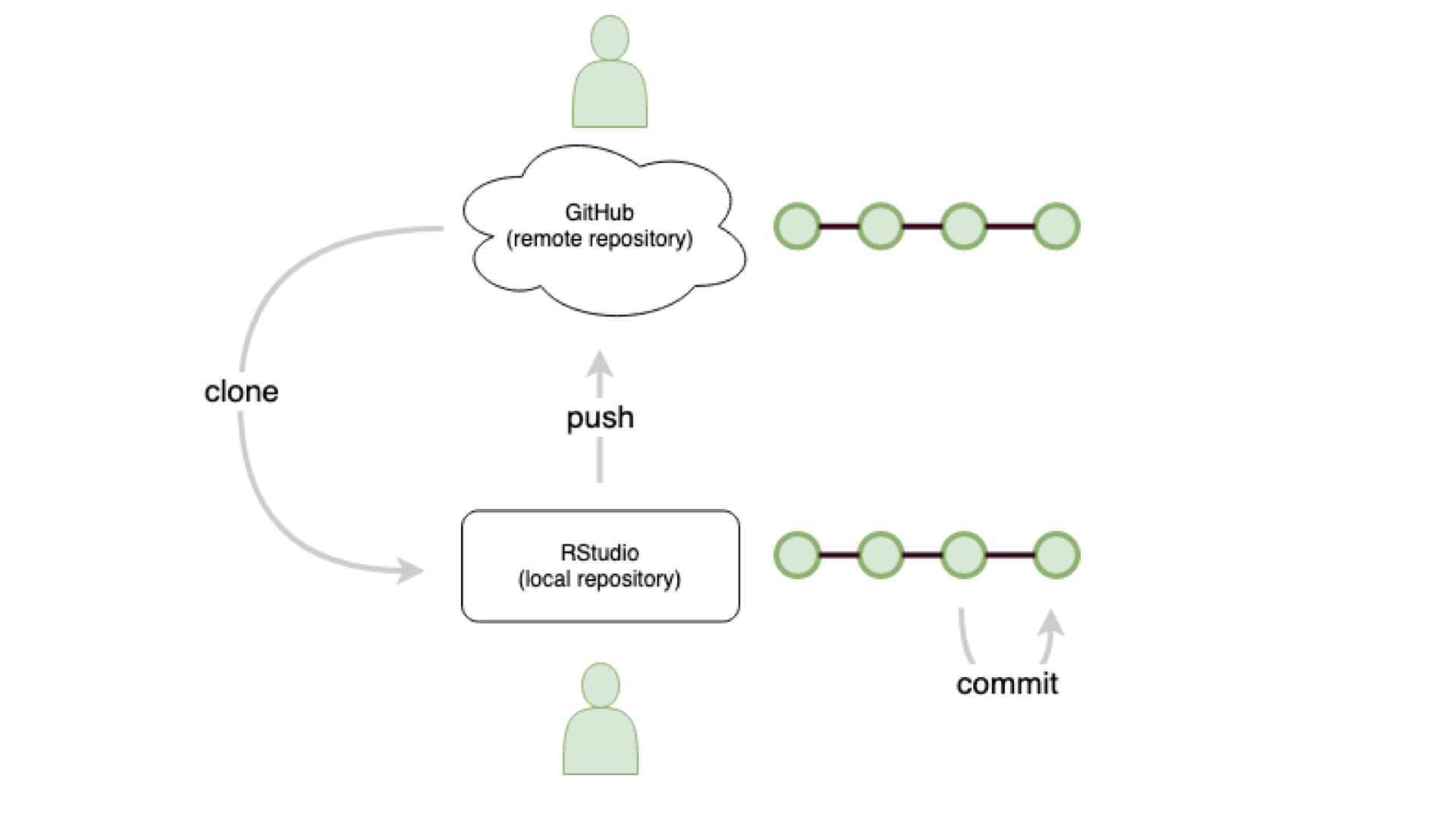

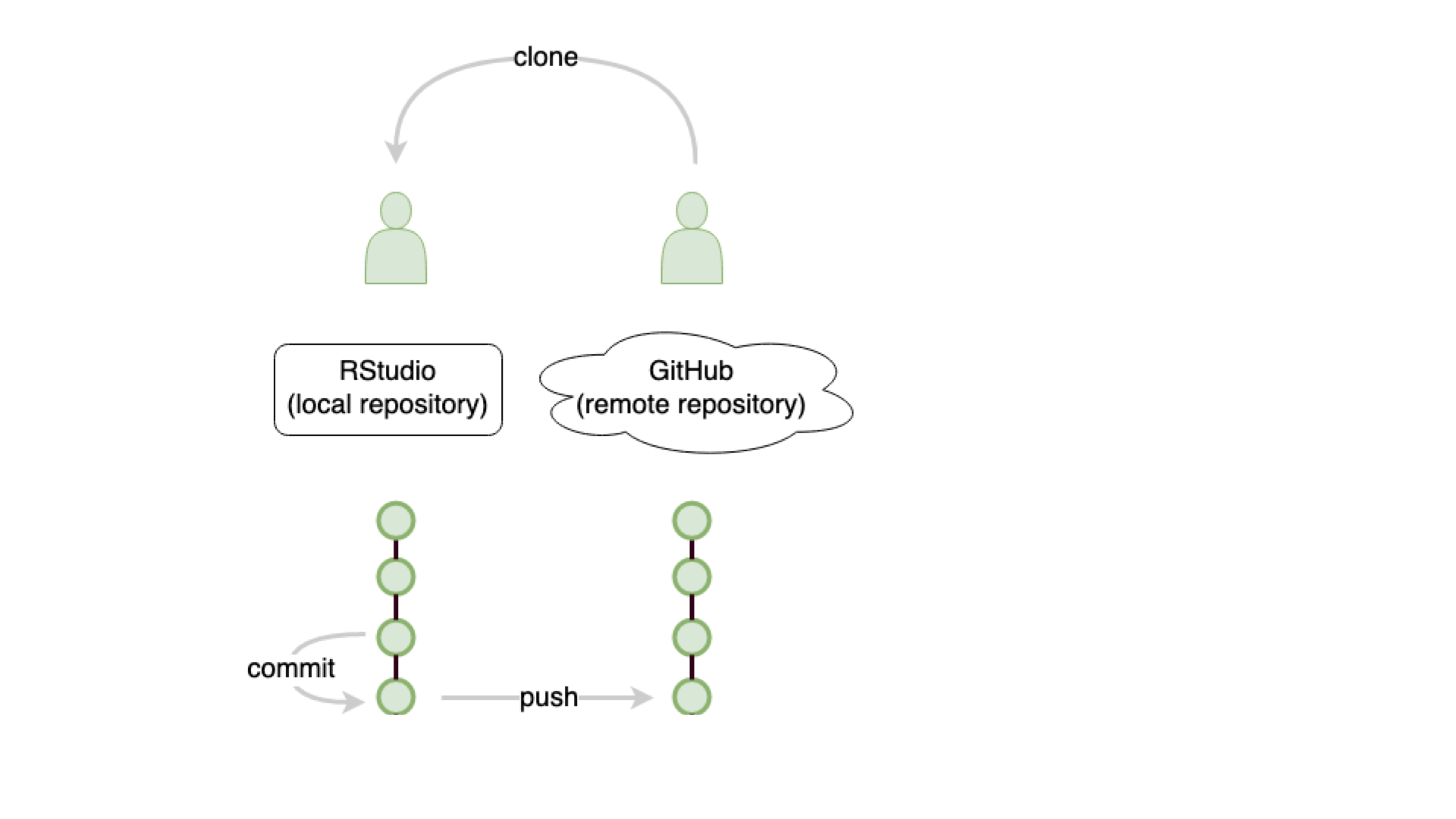

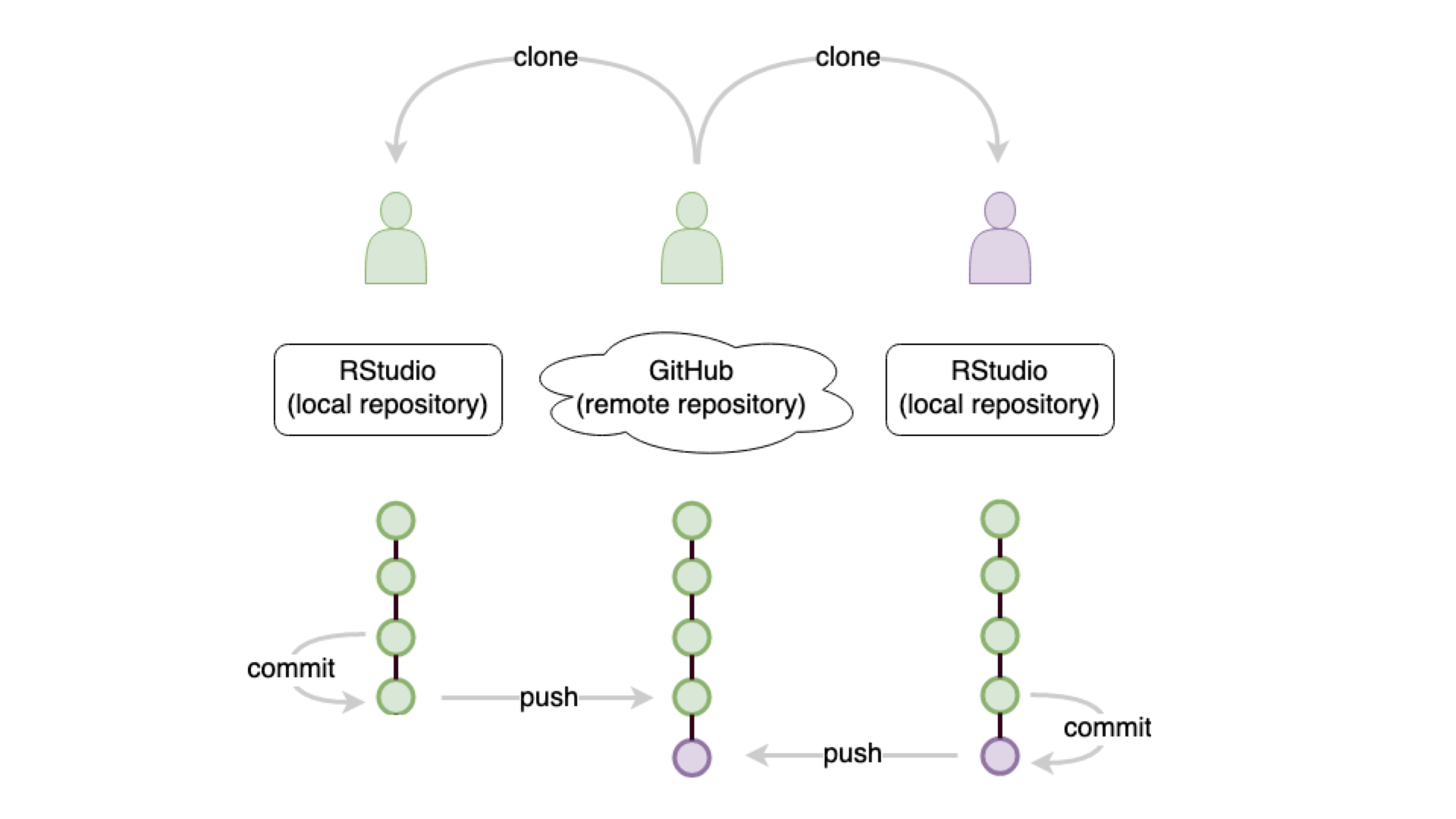

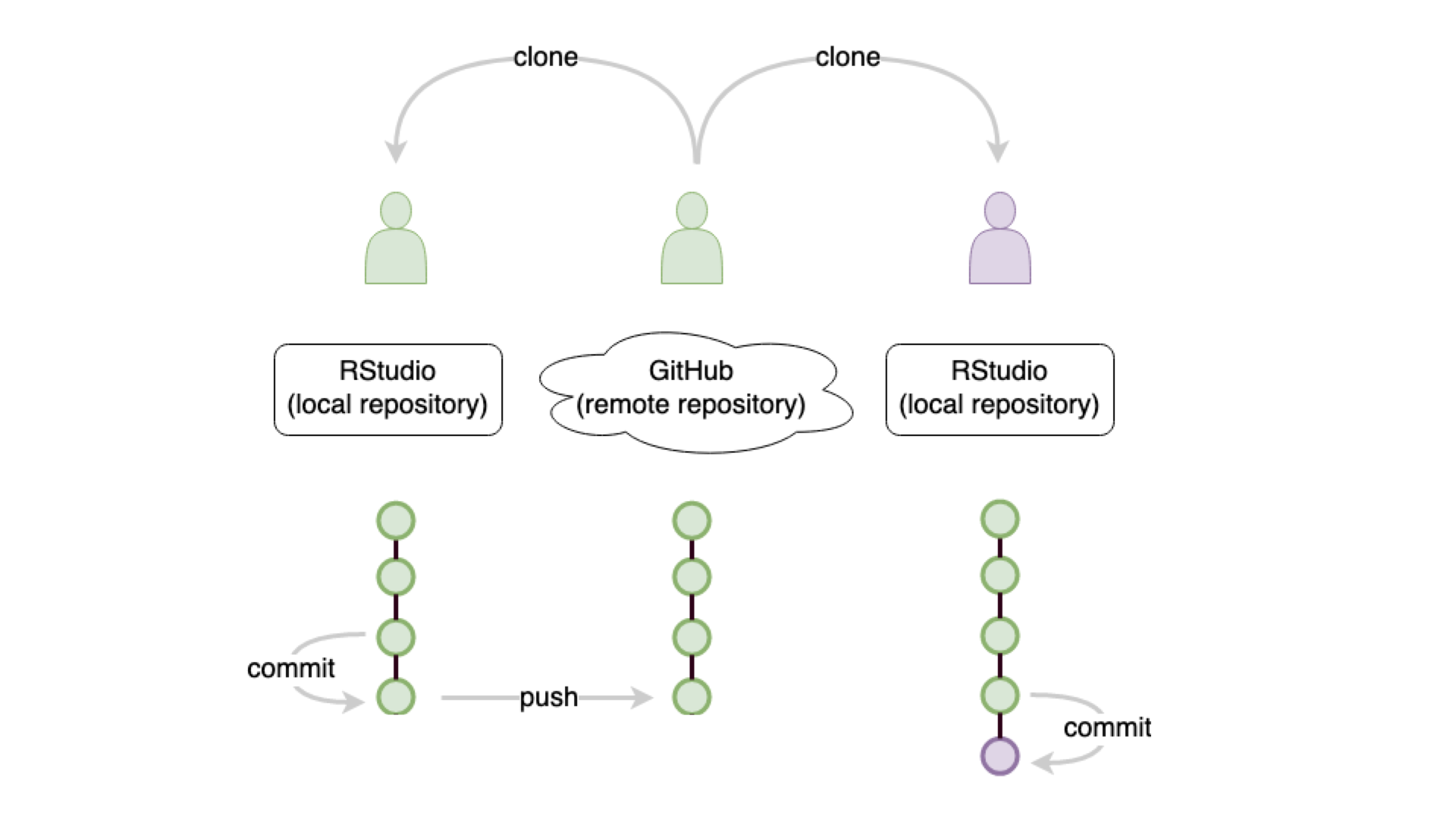

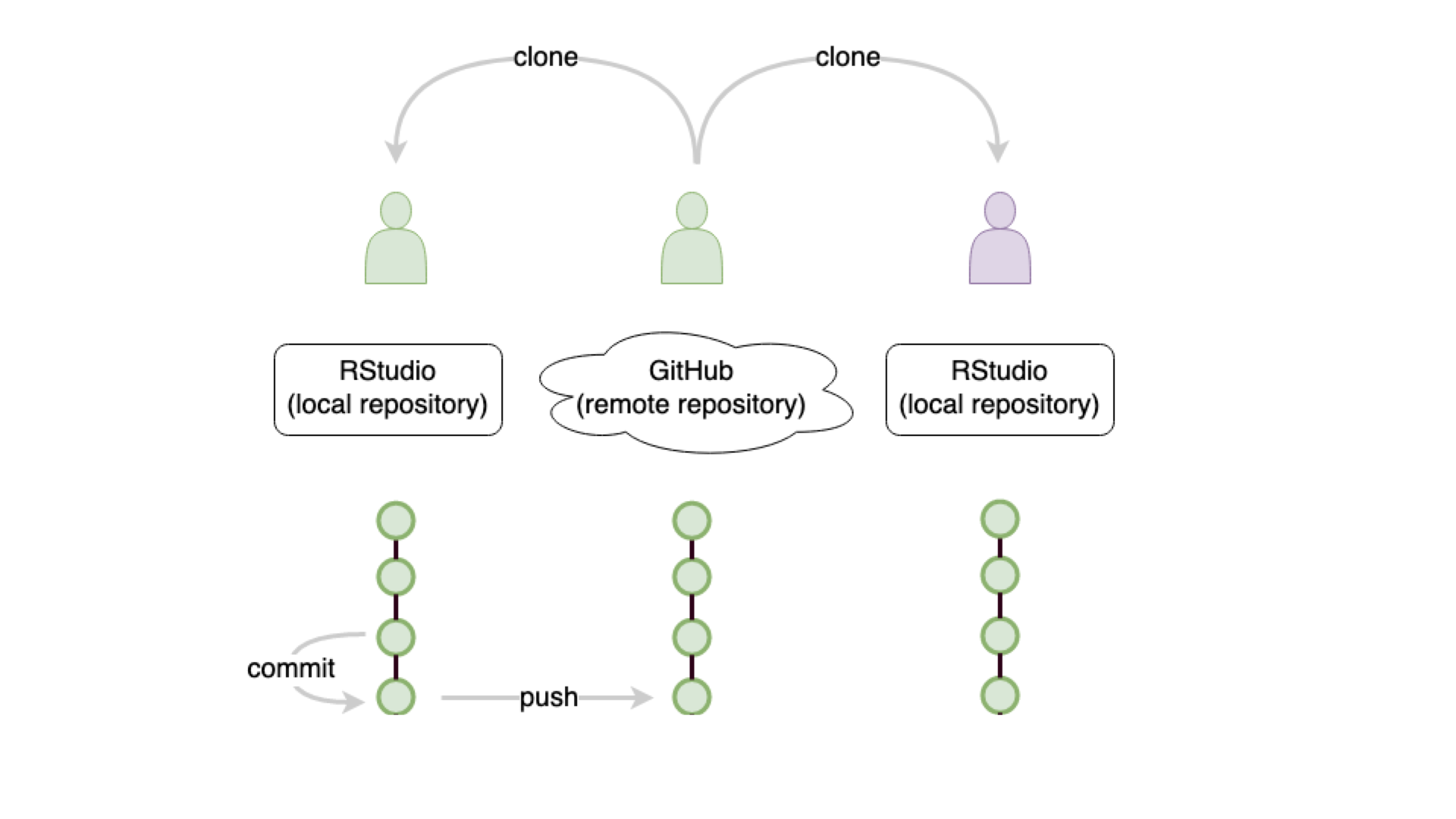

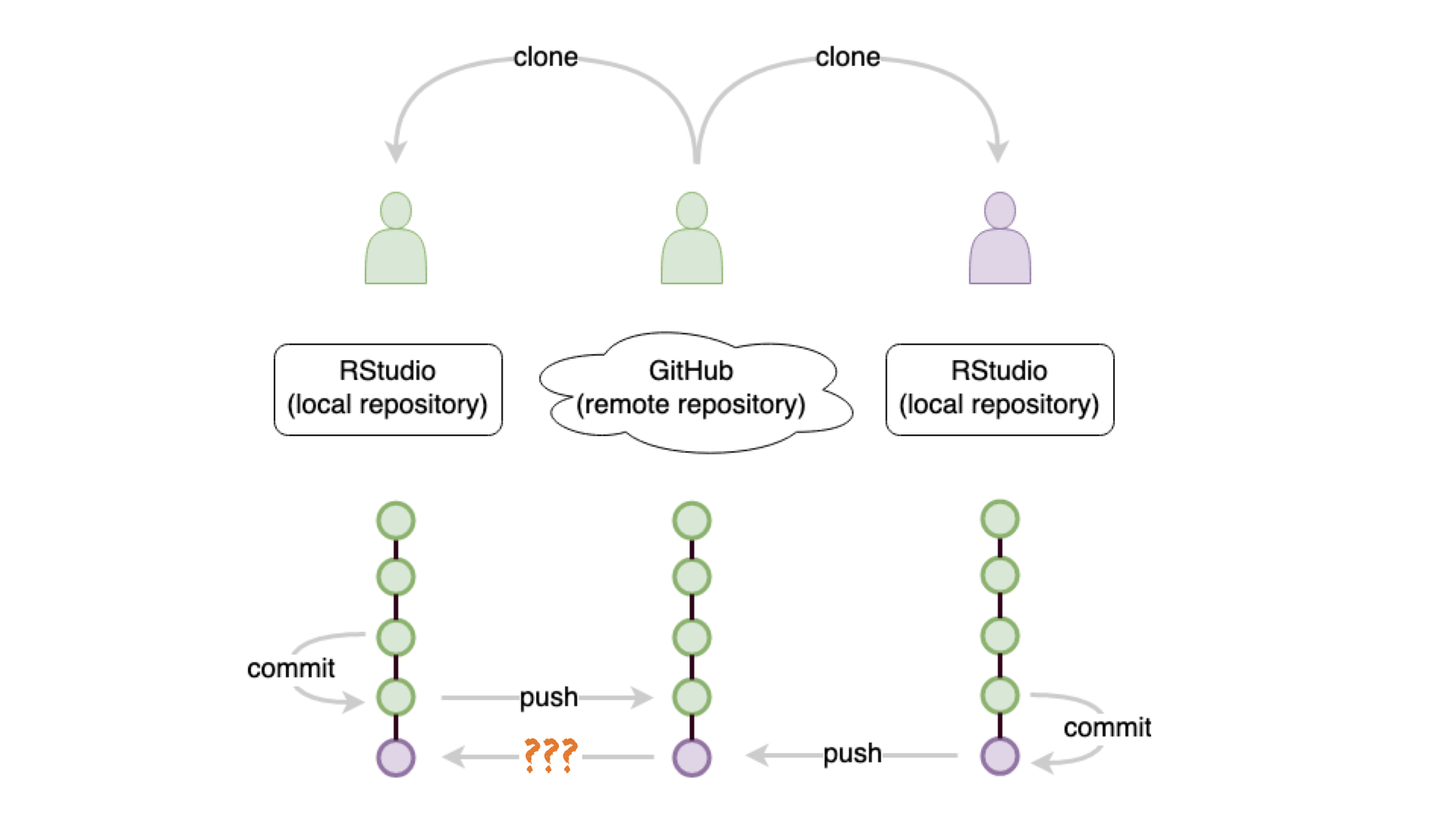

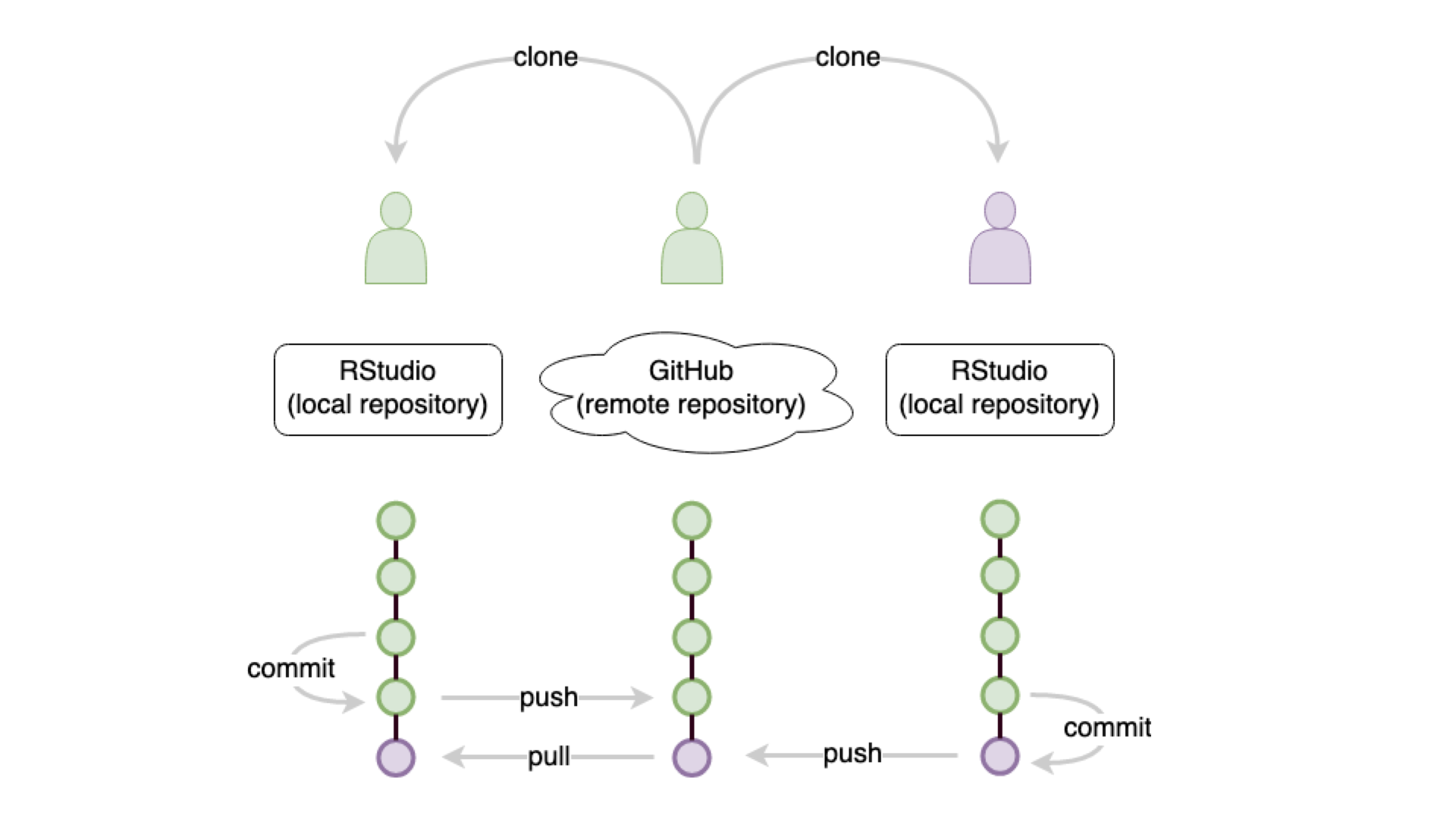

Version Control - Terminology

-

-

-

-

-

-

-

-

-

-

-

-

remember: git commit

remember: git push

remember: git push

collaborate: git clone

track work: git commit

update: git ???

update: git push

git ???

new: git pull

Learning Objectives (for this week)

1. Learners can list the six elements of the data science lifecycle.
2. Learners can describe the four main aesthetic mappings that can be used to visualise data using the ggplot2 R Package.
3. Learners can control the colour scaling applied to a plot using colour as an aesthetic mapping.
4. Learners can compare three different geoms (bar/col, histogram, point) and their use case.

Data Science Lifecycle

-

Add notes

-

1. First you must import your data into R. This typically means that you take data stored:

• in a file
• in a database,
• or web application, and load it into R.

2. If you can get your data into R, you can do data science on it!

-

1. Once you’ve imported your data, it is a good idea to tidy it.

2. This means to get it into a structure that lets you focus on the questions about your data and not the format it needs to be in

3. This is the step where we spend by far the biggest amount of our time.

4. It has been estimated that we spend about 80% of our time with cleaning and tidying data, so that we can use it fo our analyses.

5. In my courses you will learn how to structure your data in a tidy format as you collect it, and before you import it. A highly underestimated skill.

-

1. Once your data is tidy, a common first step is to transform it.

2. This includes

• narrowing in on what interests you (like all people without toilets in one district, or all data from last year)
• creating new variables from existing (like toilet density, as in number of people per toilet)
• calculating summary statistics (like counts or the mean)

Together, tidying and transforming are called wrangling, because getting your data in a form that’s natural to work with often feels like a fight!

-

1. Once you have tidy data with the variables you need, there are two main engines of knowledge generation:

• visualization
• and modelling.

2. These have complementary strengths and weaknesses so any real analysis will iterate between them many times.

3. Visualization is a fundamentally human activity. A good visualization will show you things that you did not expect, or raise new questions about the data.

-

1. Models are complementary tools to visualization. Once you have made your questions sufficiently precise, you can use a model to answer them.

2. In my courses, they play a very small part, but I am confident that you will be able to enhance your knowledge on modelling once you understand the basic principles of using the R language.

-

1. The last step of data science is communication, an absolutely critical part of any data analysis project.

2. It doesn’t matter how well your models and visualization have led you to understand the data, unless you can also communicate your results to others.

3. And this is a part where R has become really strong.

Exploratory Data Analysis with ggplot2

R Package ggplot2

• ggplot2 is tidyverse’s data visualization package
• gg in ggplot2 stands for Grammar of Graphics
• Inspired by the book Grammar of Graphics by Leland Wilkinson
• Documentation: https://ggplot2.tidyverse.org/

Slide adapted from datasciencebox.org

My turn: Working with R

Sit back and enjoy!

Take a break

Please get up and move!

10:00

Code structure

• ggplot() is the main function in ggplot2
• Plots are constructed in layers
• Structure of the code for plots can be summarized as

ggplot(data = [dataset],
       mapping = aes(x = [x-variable],
                     y = [y-variable])) +
  geom_xxx() +
  other options

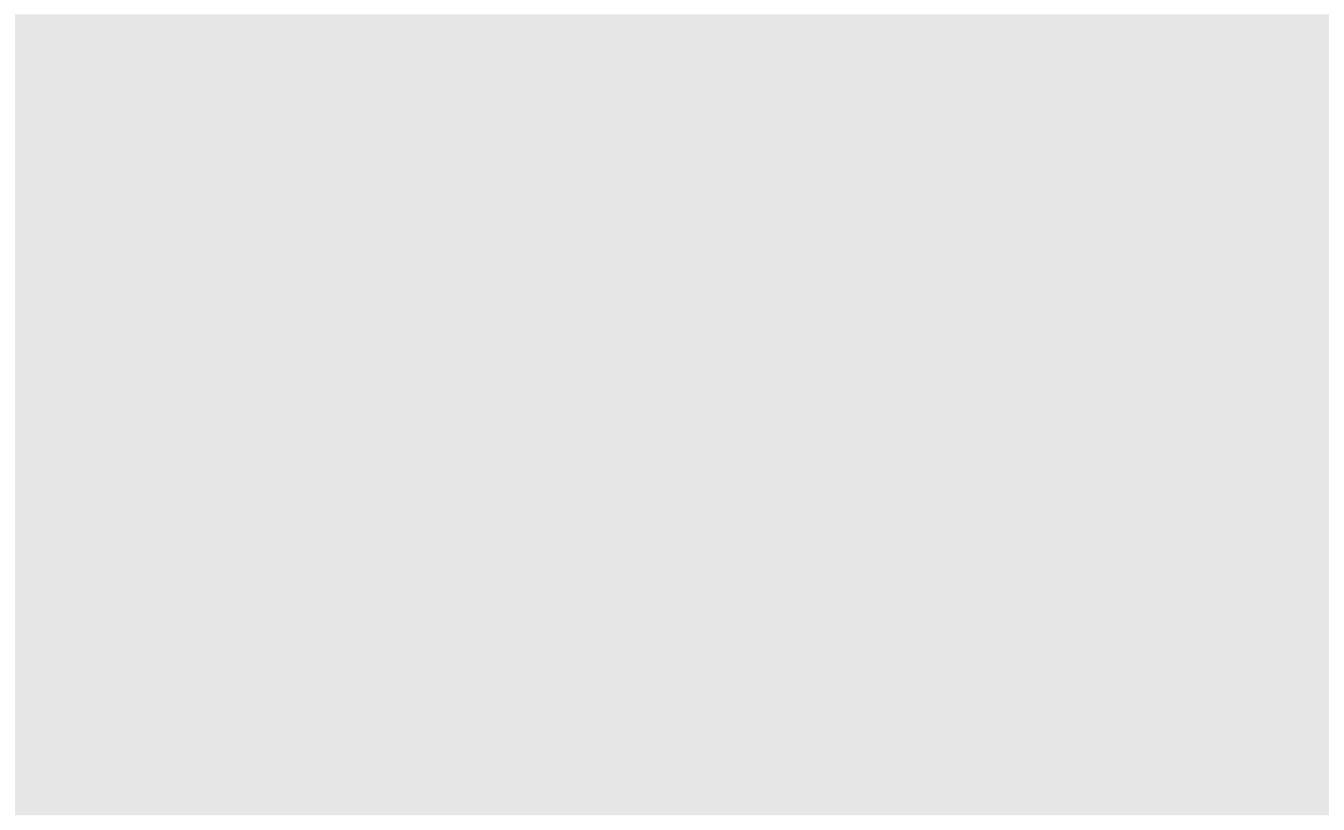

Code structure

ggplot()

Code structure

ggplot(data = gapminder)

Code structure

ggplot(data = gapminder,
       mapping = aes())

Code structure

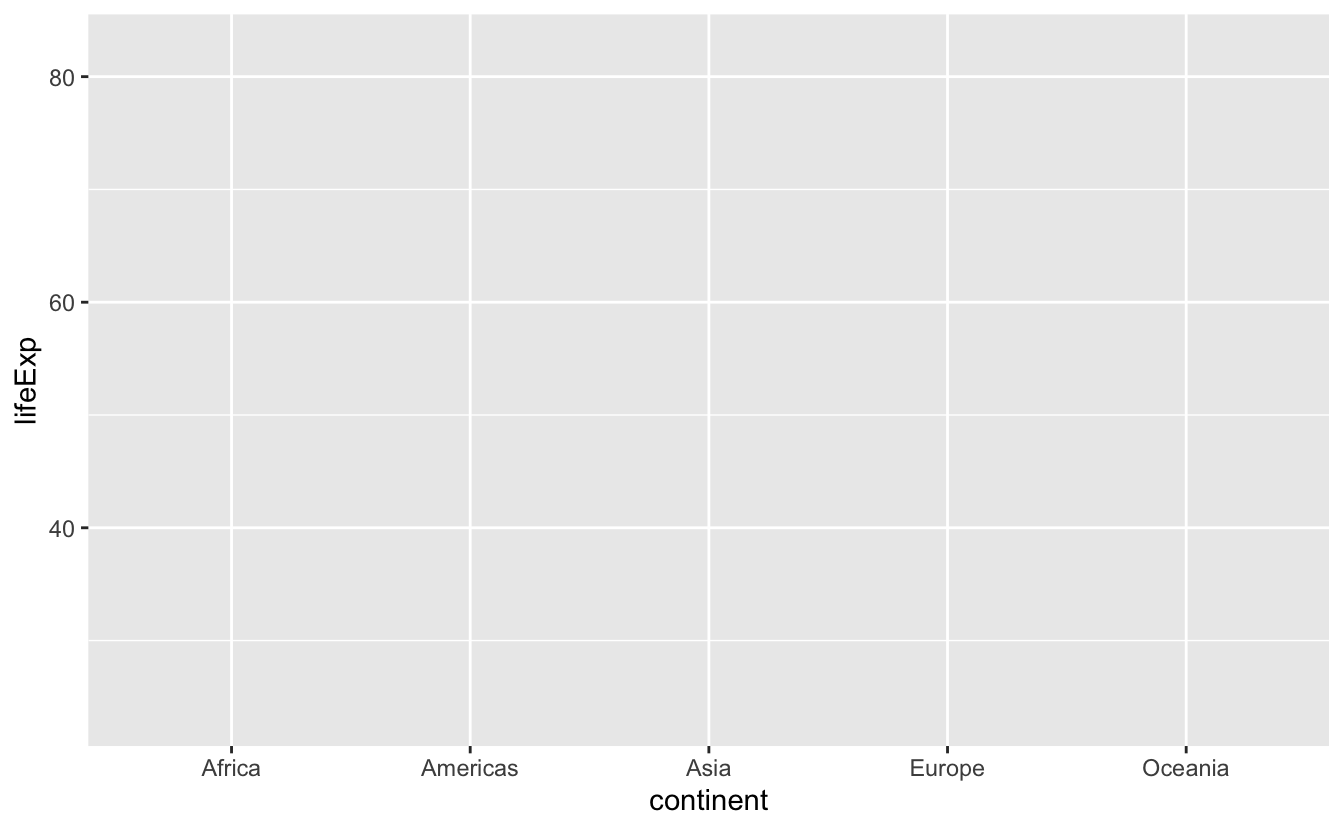

ggplot(data = gapminder,
       mapping = aes(x = continent,
                     y = lifeExp))

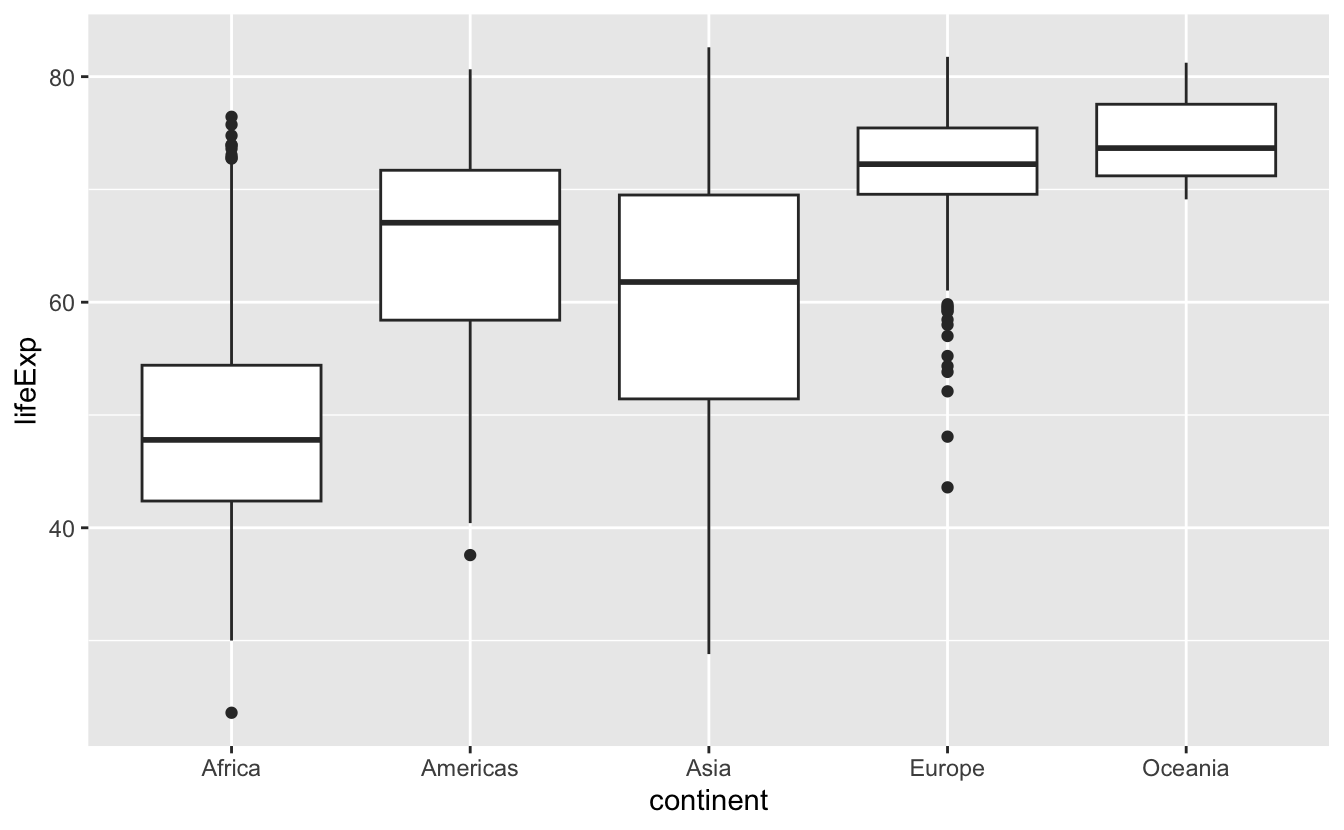

Code structure

ggplot(data = gapminder,
       mapping = aes(x = continent,
                     y = lifeExp)) +
  geom_boxplot()

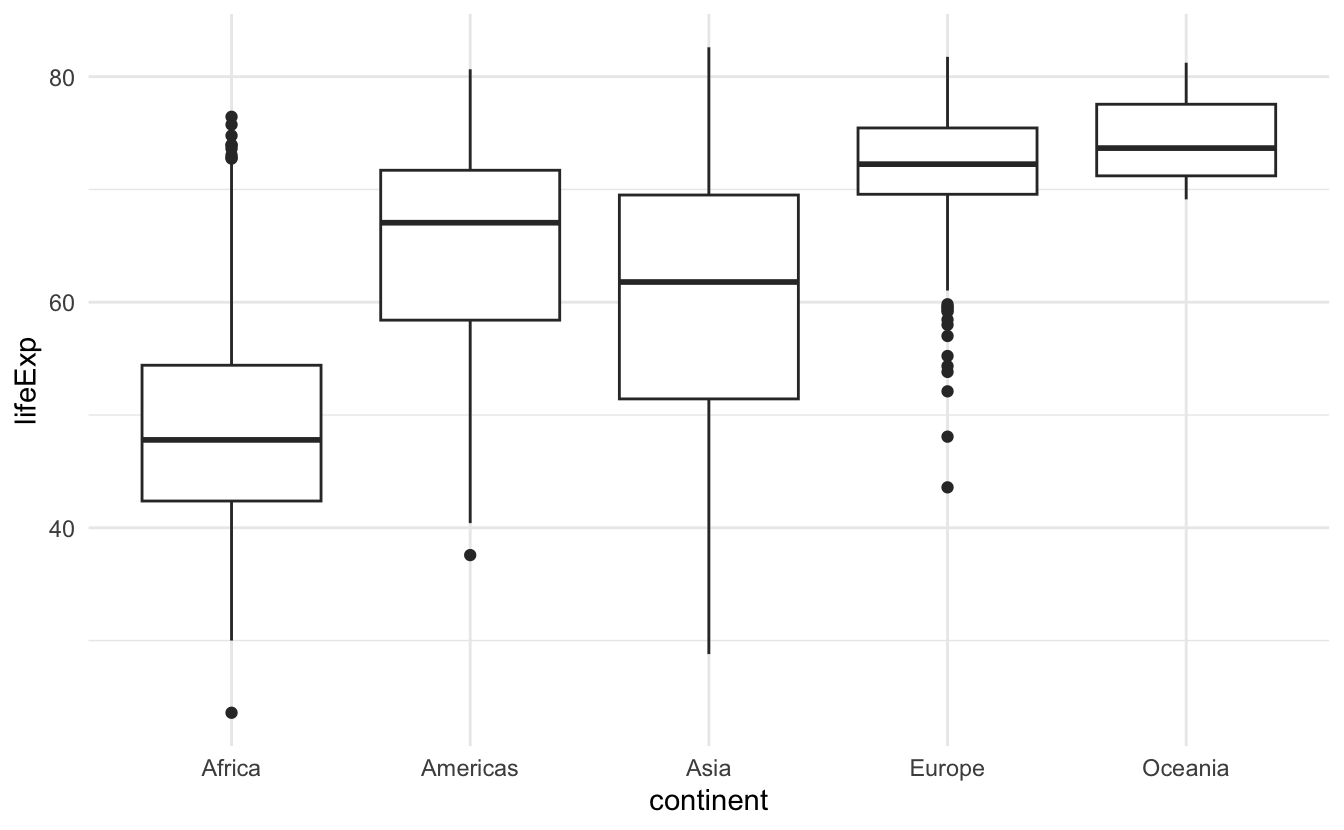

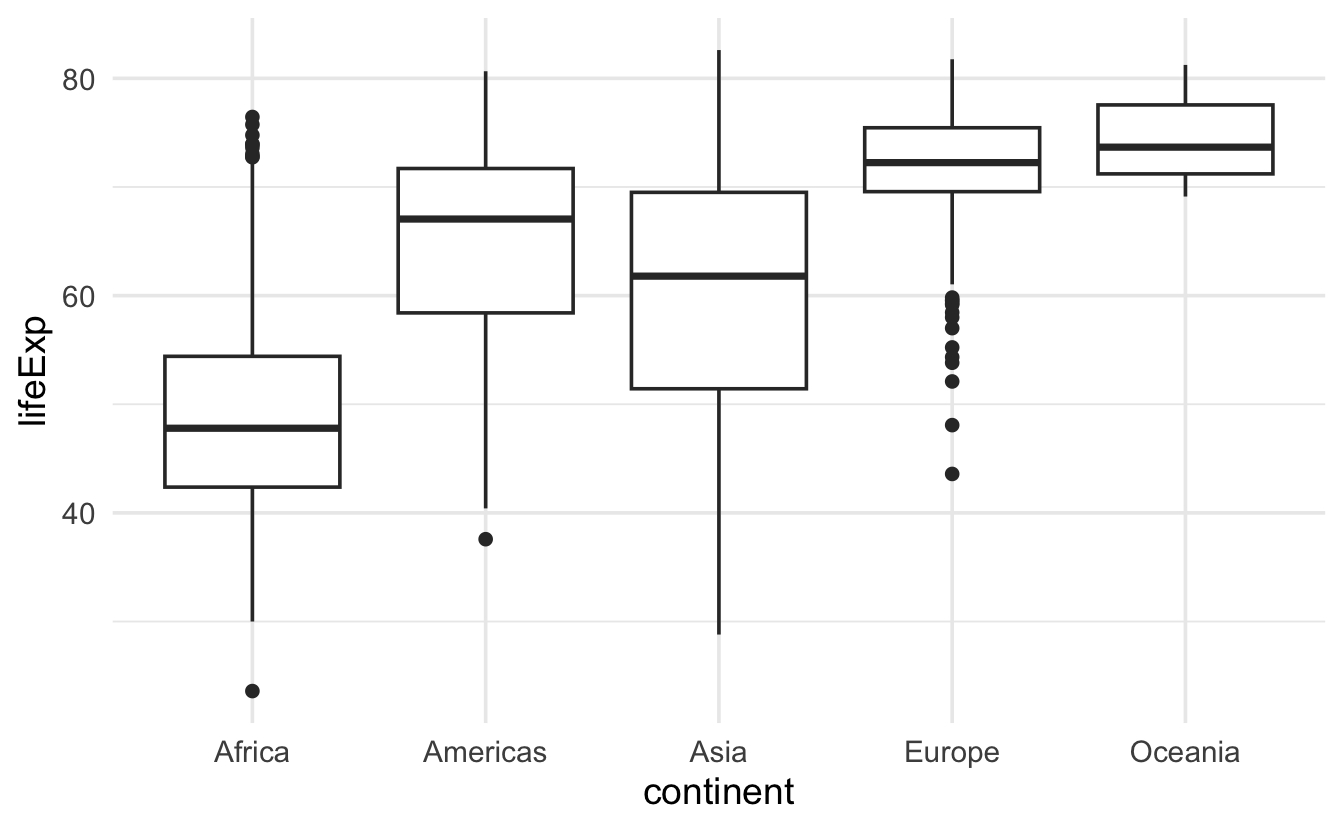

Code structure

ggplot(data = gapminder,
       mapping = aes(x = continent,
                     y = lifeExp)) +
  geom_boxplot() +
  theme_minimal()

Polls

Poll 1: What does the thick line inside the box of a boxplot represent?

1. the mean of the observations
2. the middle of the box
3. the median of the observations
4. none of the above

Poll 2: What percentage of observations are contained inside the box of a boxplot (interquartile range)?

1. 25%
2. depends on the median
3. 50%
4. none of the above

Poll 3: What is the median of a set of observations?

1. The median is the most frequently occurring value in a dataset.
2. The median is the sum of all values in a dataset divided by the number of observations.
3. The median is the point above and below which half (50%) of the observations falls.
4. The median is the square root of the sum of the squares of each value in a dataset.

Boxplot, explained

Figure 1: Diagram depicting how a boxplot is created.

• A box that indicates the range of the middle half of the data, a distance known as the interquartile range (IQR), stretching from the 25th percentile of the distribution to the 75th percentile.

• In the middle of the box is a line that displays the median, i.e. 50th percentile, of the distribution.

• These three lines give you a sense of the spread of the distribution and whether or not the distribution is symmetric about the median or skewed to one side.

• Visual points that display observations that fall more than 1.5 times the IQR from either edge of the box. These outlying points are unusual so are plotted individually.

• A line (or whisker) that extends from each end of the box and goes to the farthest non-outlier point in the distribution.

Our turn: md-02-exercises

1. Open posit.cloud/spaces/663318/content in your browser.
2. Verify that the ds4owd workspace is open.
3. Click Start next to md-02-exercises.
4. In the File Manager in the bottom right window, locate the md-02b-visualize.qmd file and click on it to open it in the top left window.

30:00

Take a break

Please get up and move!

10:00

Visualizing data

Types of variables

numerical

discrete variables

• non-negative
• whole numbers
• e.g. number of students, roll of a dice

continuous variables

• infinite number of values
• also dates and times
• e.g. length, weight, size

non-numerical

categorical variables

• finite number of values
• distinct groups (e.g. EU countries, continents)
• ordinal if levels have natural ordering (e.g. week days, school grades)

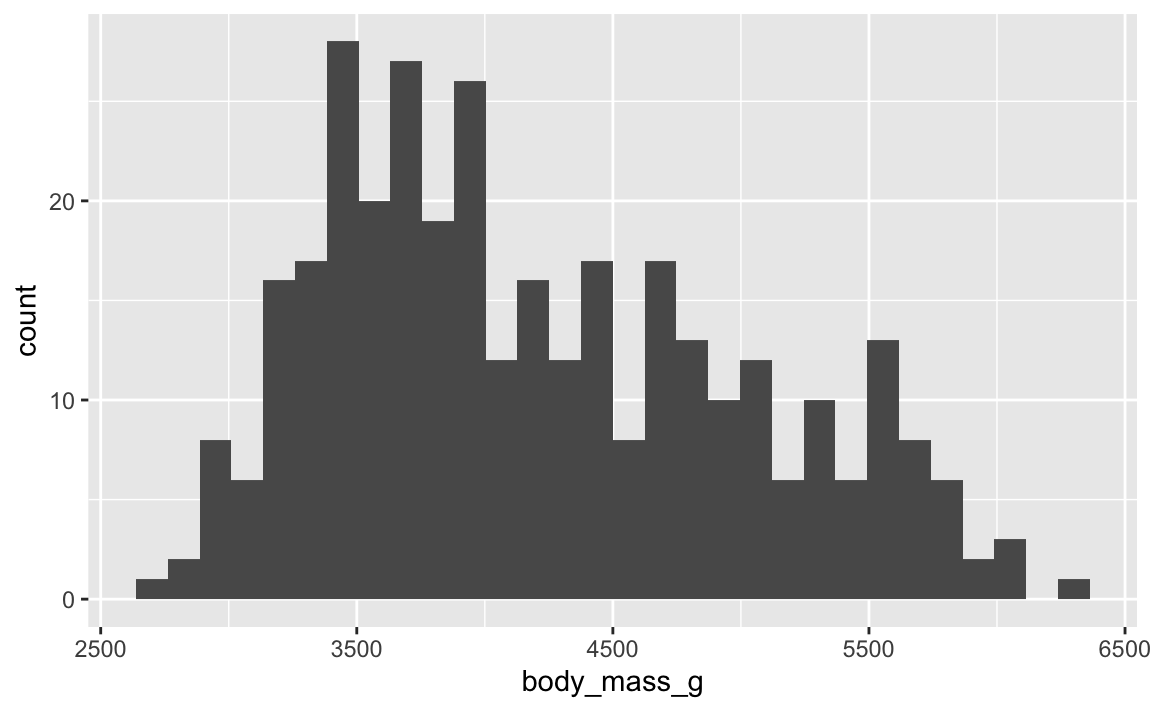

Histogram

• for visualizing distribution of continuous (numerical) variables

ggplot(data = penguins,
       mapping = aes(x = body_mass_g)) +
  geom_histogram()

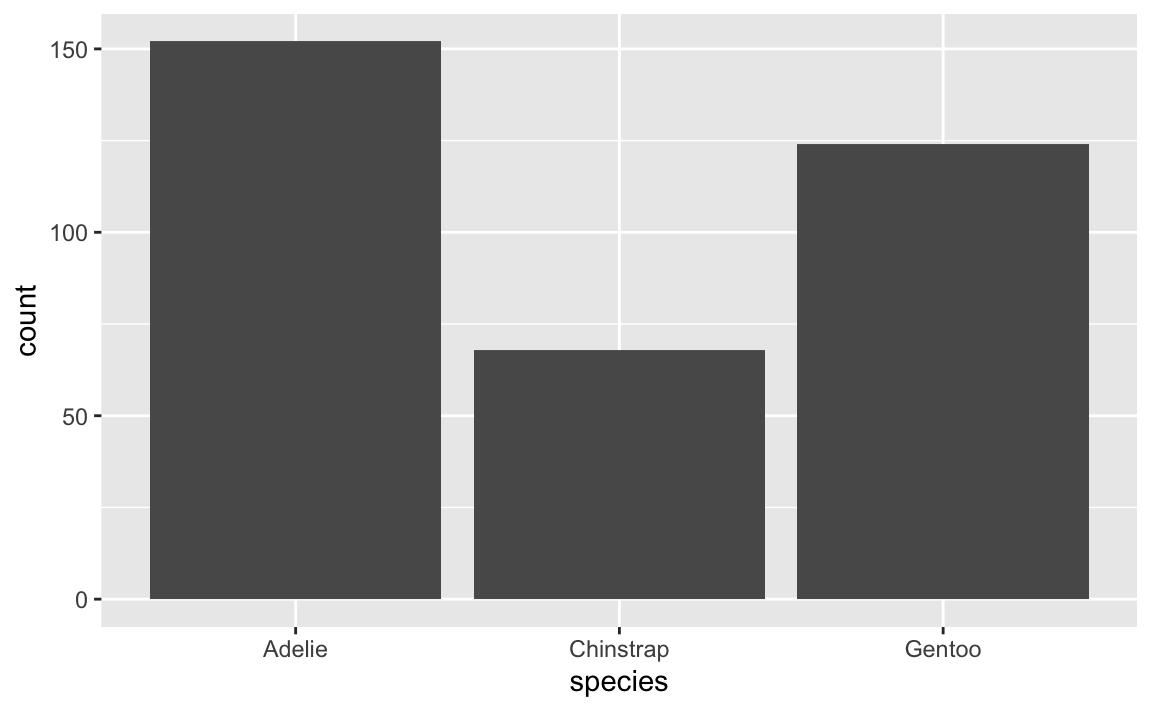

Barplot

• for visualizing distribution of categorical (non-numerical) variables

ggplot(data = penguins,
       mapping = aes(x = species)) +
  geom_bar()

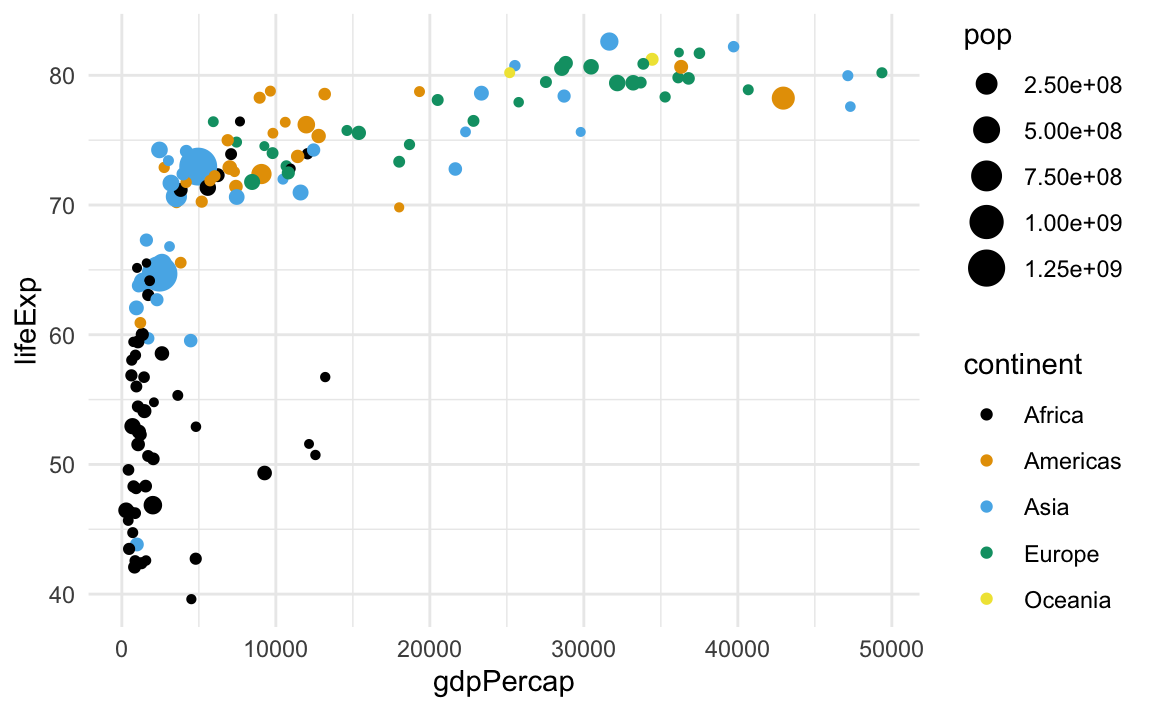

Scatterplot

• for visualizing relationships between two continuous (numerical) variables

ggplot(data = gapminder_2007,
       mapping = aes(x = gdpPercap,
                     y = lifeExp,
                     size = pop,
                     color = continent)) +
  geom_point() +
  scale_color_colorblind() +
  theme_minimal()

Your turn: md-02-exercises

1. If you closed it, open posit.cloud/spaces/663318/content in your browser.
2. Verify that the ds4owd workspace is open.
3. Click Continue next to md-02-exercises.
4. In the File Manager in the bottom right window, locate the md-02c-boxplot.qmd file and click on it to open it in the top left window.
5. Follow instructions in the file.

15:00

How to pick a plot?

data-to-viz.com

Homework assignments module 2

Module 2 documentation

ds4owd-002.github.io/website/content/modules/md-02.html

Homework due date

• Homework assignment due: Wednesday, 2025-09-24
• Quiz due: Wednesday, 2025-10-01

Wrap-up

Thanks!
